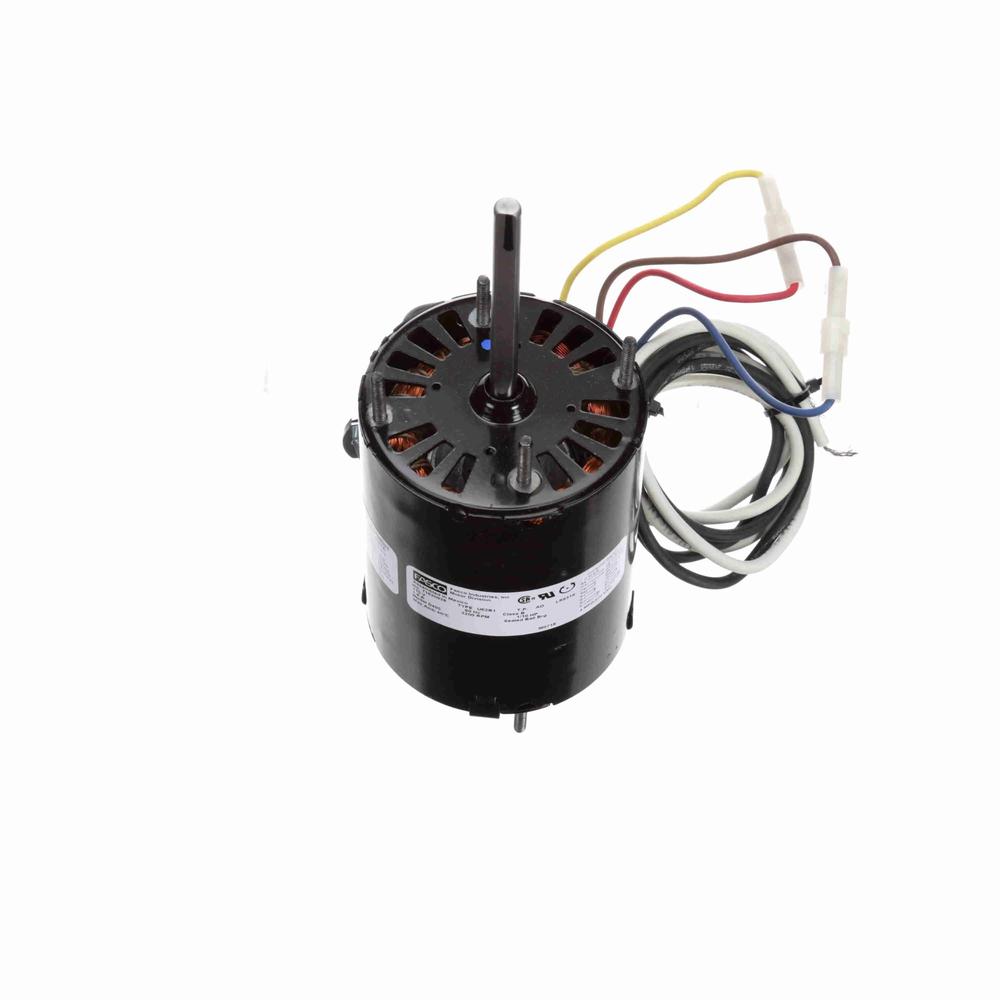

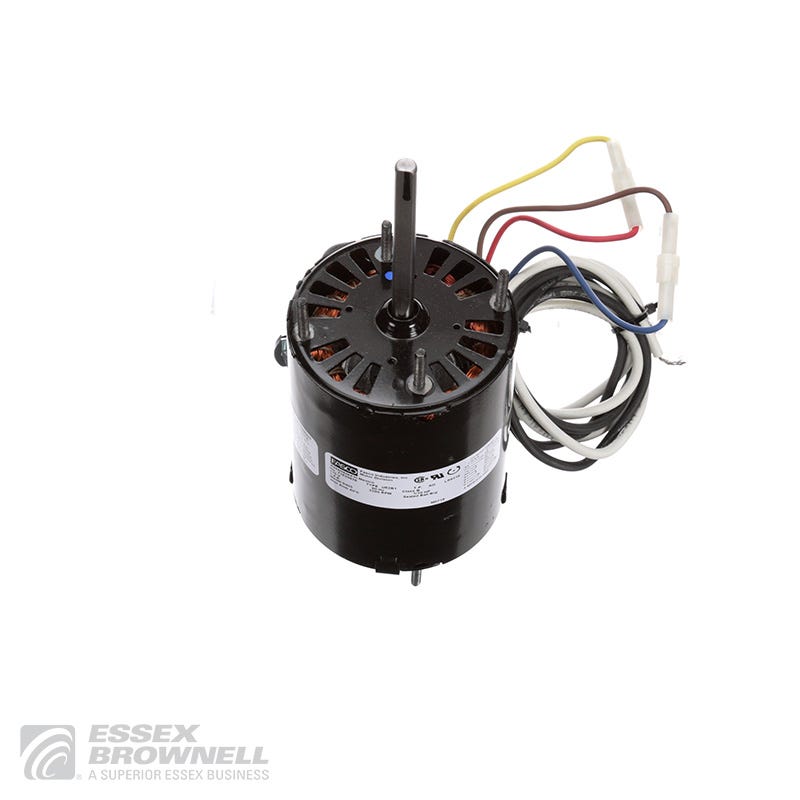

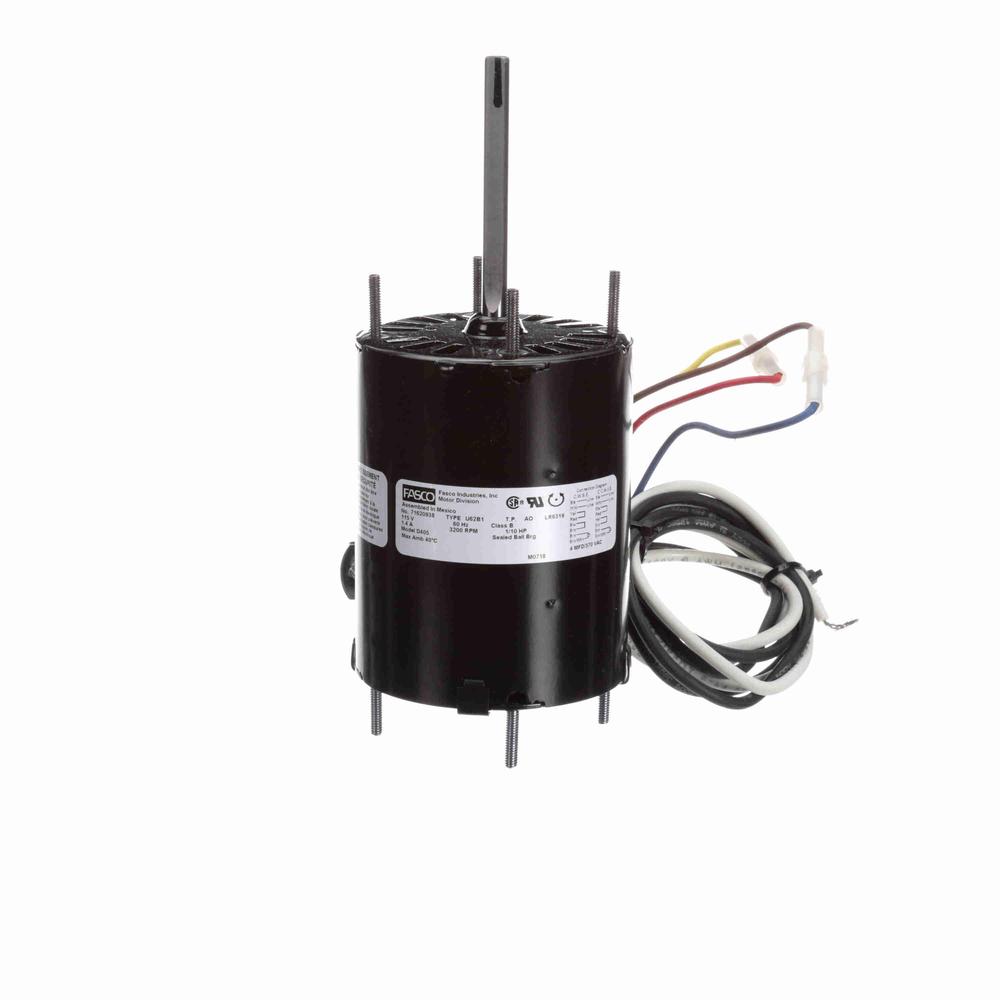

| BEARING | Ball |
| BRAND | FASCO |
| CATALOG NUMBER | D405 |
| CONNECTION DRAWING NO | 469120 |
| DUTY | Continuous Air Over |
| ENCLOSURE | OPEN AIR OVER |
| FL AMPS | 1.4 A |
| FRAME | 3.3 |
| FREQUENCY | 60 HZ |
| HEIGHT | 4.56 IN |
| INSULATION CLASS | B |
| LEAD TIME | 21 |
| LENGTH | 11 IN |
| MANUFACTURE MODEL NUMBER | D405 |
| MANUFACTURER | Fasco Industries Inc |
| MOTOR TYPE | Psc |
| MOUNTING | Extended Studs |
| NUMBER OF POLES | 2 |
| NUMBER OF SPEEDS | 1 |
| OUTPUT | 1/10 HP |
| PRODUCT NAME | 1/10,3600,115,3.3,TEAO,PSC |
| PRODUCT SKU | WD-405 |
| ROTATION | Reversible |
| RPM | 3200(1) |
| SERVICE FACTOR | 1 |
| SHAFT DIAMETER (IN IN.) | 0.312 |
| SHAFT EXTENSION | 3.25 |
| SHAFT TYPE | Flat |
| SPEED | 3200 |
| SUPPLIER | Fasco Industries Inc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 115 V |
| WIDTH | 5.5 IN |
