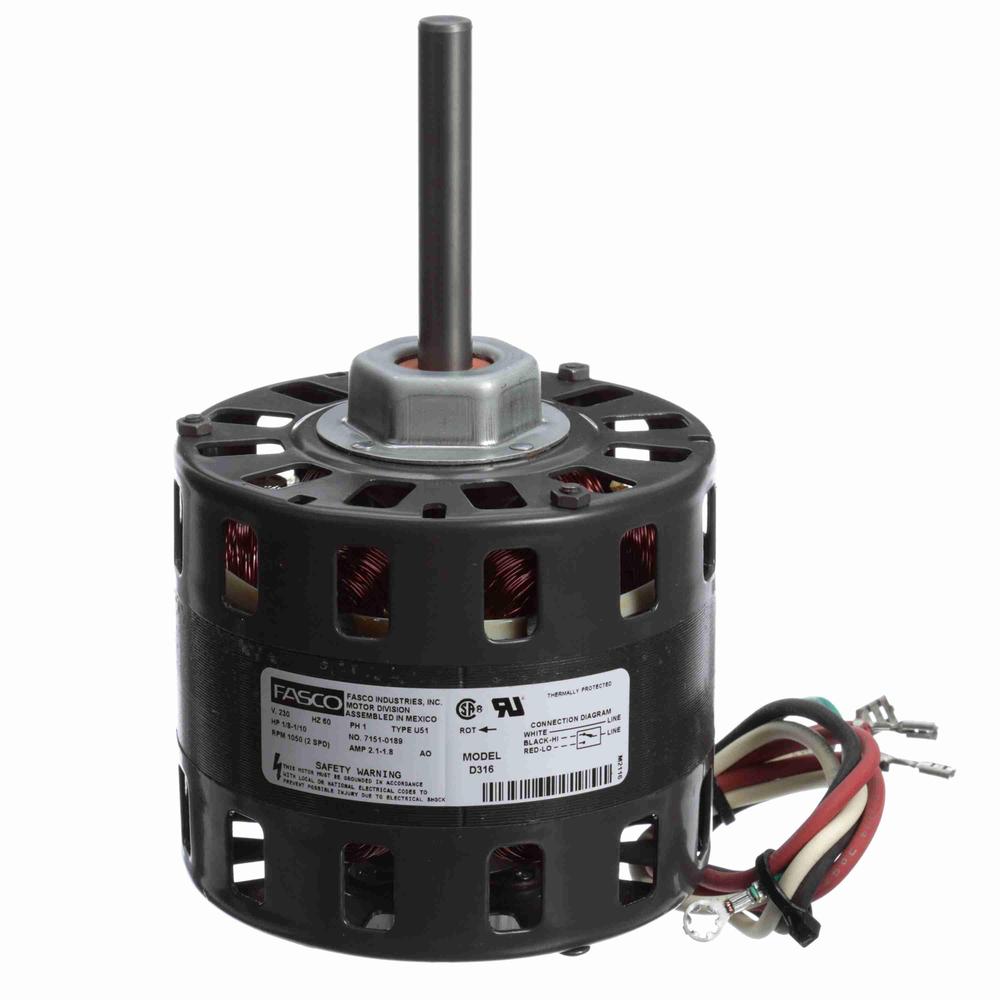

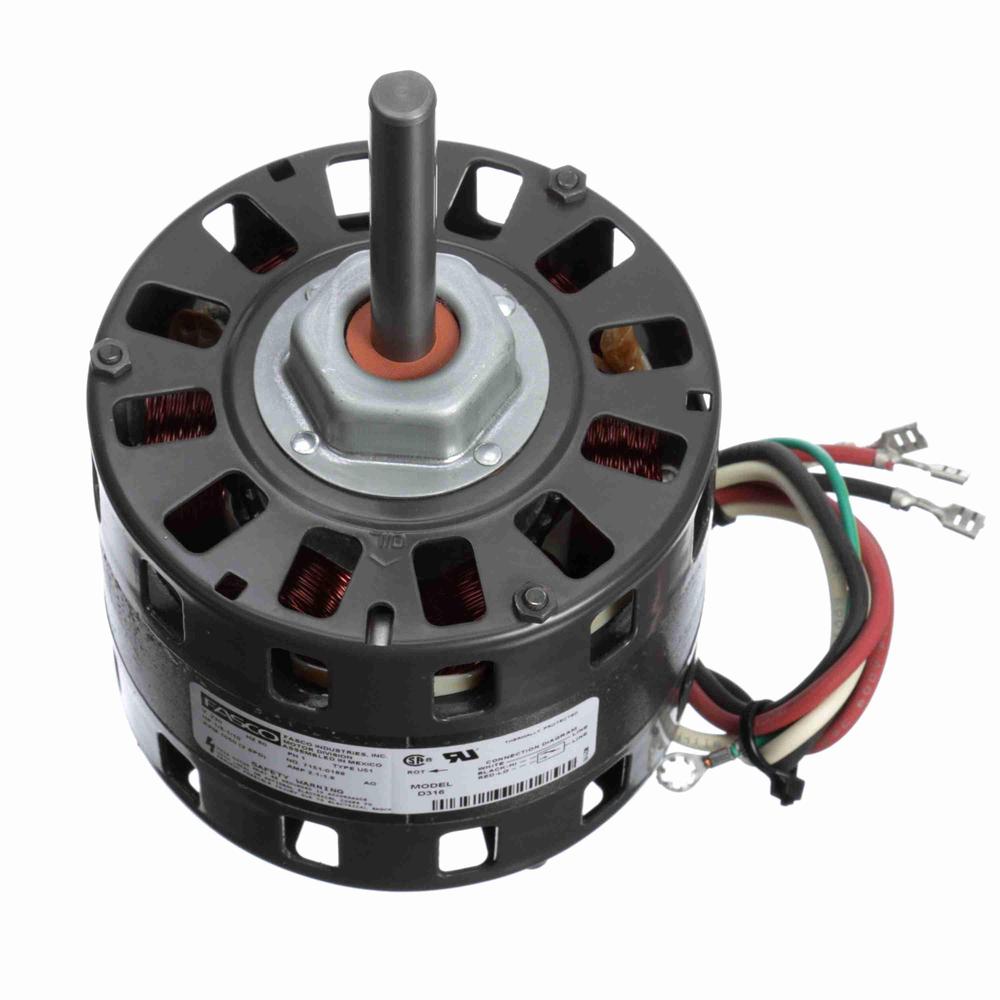

| AMBIENT | 40 °C |
| BEARING | Sleeve |
| BRAND | FASCO |
| CATALOG NUM | D316 |
| CE | No |
| COUNTRY OF ORIGIN | Mexico |
| CSA | Yes |
| DUTY | Continuous Air Over |
| ENCLOSURE | OPEN AIR OVER |
| FL AMPS | 2.1-1.8 A A |
| FRAME | 42 |
| FREQUENCY | 60 HZ |
| HEIGHT | 10 IN |
| HORSE POWER | 1/8 HP |
| INSULATION CLASS | A |
| LEAD TIME | 21 |
| LENGTH | 5.13 IN |
| MANUFACTURER | Fasco Industries Inc |
| MFG MODEL NUM | D316 |
| MIN QUANTITY INCREMENT | 1 |
| MOTOR TYPE | Shp |
| MOUNTING | Hexagonal Hubs |
| NUMBER OF PHASES | 1 |
| NUMBER OF POLES | 6 |
| NUMBER OF SPEEDS | 2 |
| PART ID | D316 |
| PRODUCT GROUP | 3050 |
| ROTATION | Clockwise |
| RPM | 1050(2) |
| SERVICE FACTOR | 1 |
| SHAFT DIAMETER IN IN | 0.5 |
| SHAFT EXTENSION | 3.55 |
| SKU | WD-316 |
| SPEED | 1050 |
| STARTING TYPE | Across The Line |
| SUPPLIER | Fasco Industries Inc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UOM | Each |
| UPC NUMBER | 815585029496 |
| VOLTAGE | 230 V |
| WEIGHT STATIC | 8.60 LB |
| WIDTH | 5.13 IN |
