| AMBIENT | 40 °C |
| BEARING | Ball |

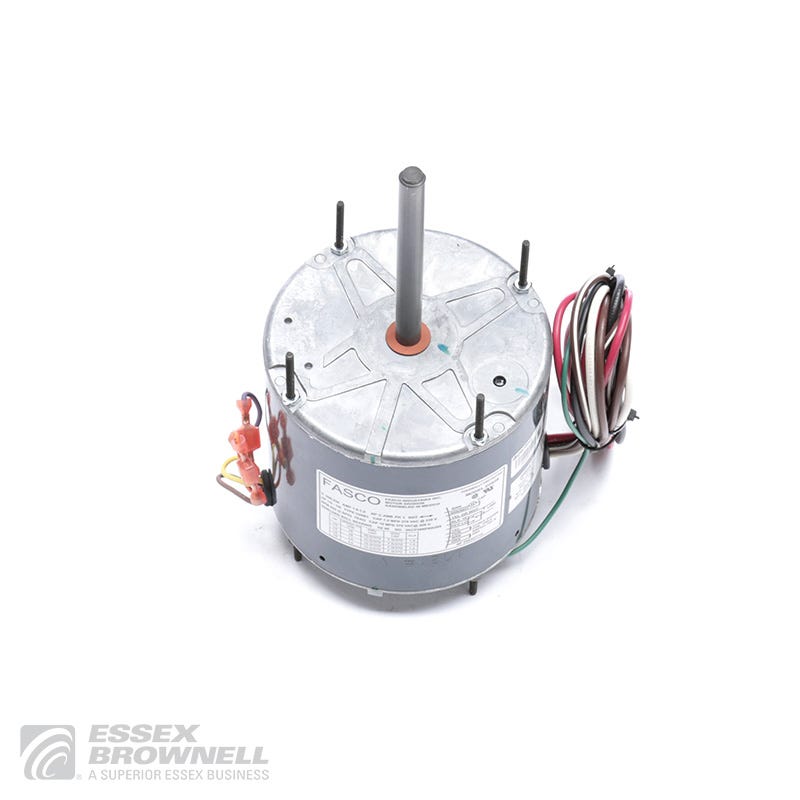

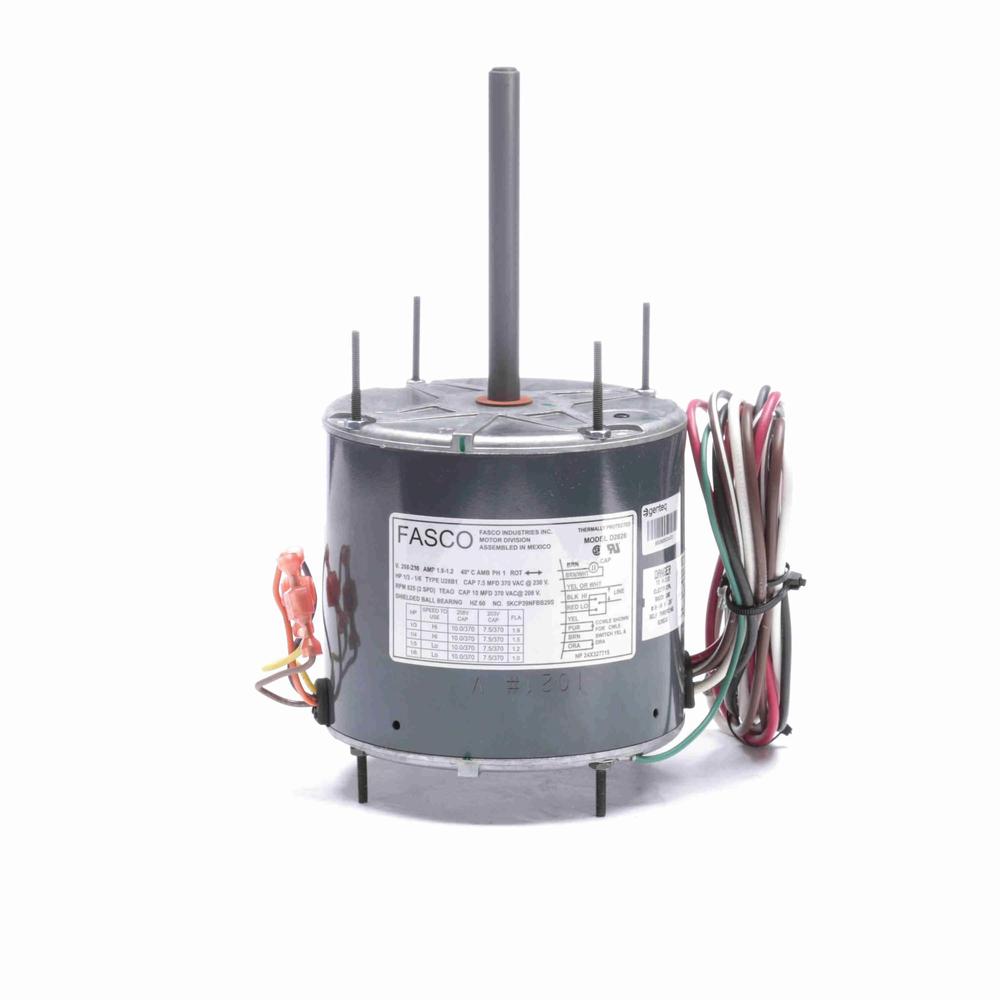

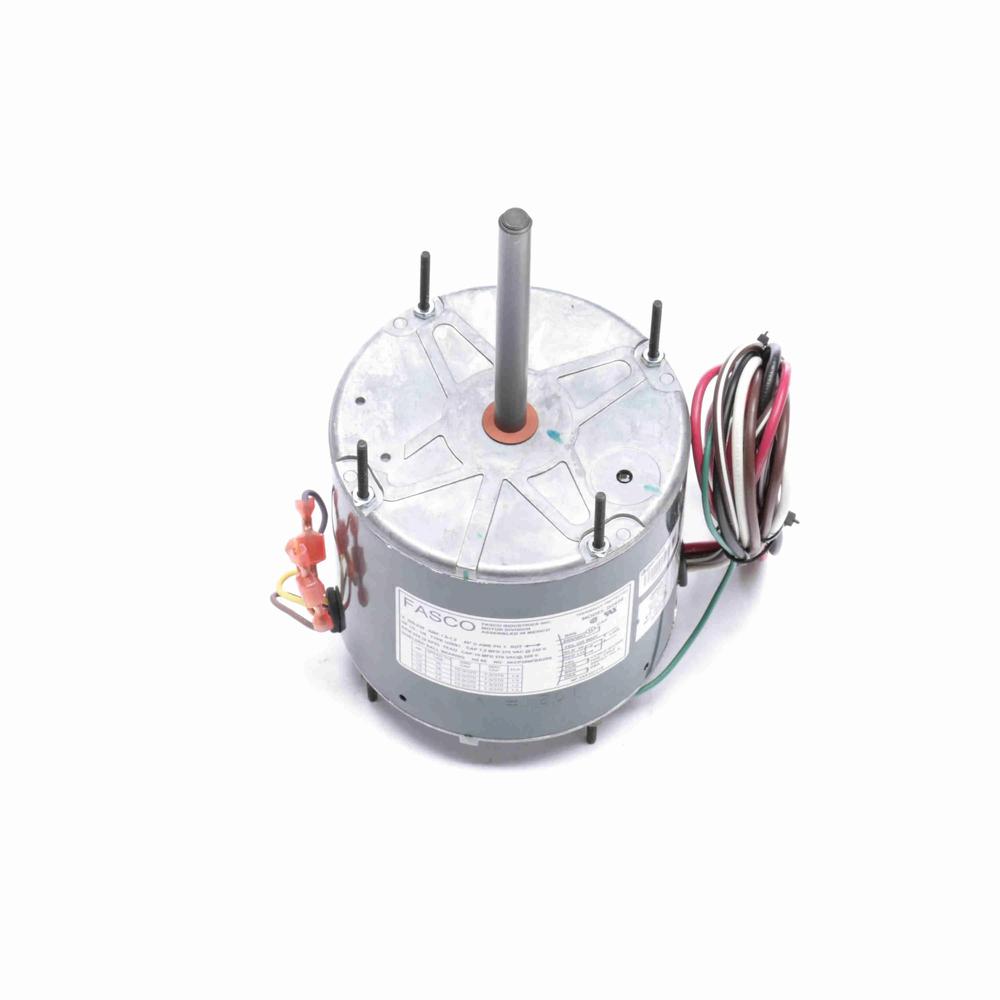

| BRAND | FASCO |
| CATALOG NUM | D2826 |
| CE | No |
| CONNECTION DRAWING NO | NP24X327715 |
| CSA | Yes |
| DUTY | Continuous Air Over |
| ENCLOSURE | TOTALLY ENCLOSED AIR OVER |
| FL AMPS | 1.90/1.20 A |
| FRAME | 48 |
| FRAME LENGTH | 4.57 |
| FRAME MATERIAL | Rolled Steel |
| FREQUENCY | 60 HZ |
| HEIGHT | 6.02 IN |
| HORSE POWER | 1/3-1/6 HP |
| INSULATION CLASS | B |
| LEAD TIME | 21 |
| LENGTH | 14.24 IN |
| MANUFACTURER | Fasco Industries Inc |
| MFG MODEL NUM | D2826 |
| MIN QUANTITY INCREMENT | 1 |
| MOTOR TYPE | Psc |
| MOUNTING | Extended Studs |
| NUMBER OF PHASES | 1 |
| NUMBER OF POLES | 8 |
| NUMBER OF SPEEDS | 2 |
| PART ID | D2826 |
| PRODUCT GROUP | 3050 |
| ROTATION | Counterclockwise |
| RPM | 825(2) |
| SERVICE FACTOR | 1 |
| SHAFT DIAMETER IN IN | 0.5 |
| SHAFT EXTENSION | 5 |
| SHAFT TYPE | Double Flat |
| SKU | WD-2826 |
| SPEED | 825 |
| SUPPLIER | Fasco Industries Inc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UOM | Each |
| UPC NUMBER | 818508022352 |
| VOLTAGE | 208-230 V |
| WEIGHT STATIC | 15.60 LB |
| WIDTH | 6.04 IN |
