| BEARING | Sleeve |
| BRAND | Century |
| C DIMENSION | 16.50 IN |
| CATALOG NUMBER | 466 |
| DUTY | Continuous Air Over |
| EFFICIENCY | Standard |
| ENCLOSURE | TOTALLY ENCLOSED AIR OVER |
| FL AMPS | 1.4/1.2 A |
| FRAME | 42 |
| FREQUENCY | 50 HZ |
| HEIGHT | 7.81 IN |
| INSULATION CLASS | B |
| LEAD TIME | 18 |
| LENGTH | 18.88 IN |
| MANUFACTURE MODEL NUMBER | 466 |
| MANUFACTURER | Regal Beloit Epc |
| MOTOR TYPE | Shp |
| MOUNTING | Round Belly Band |
| NUMBER OF POLES | 6 |
| NUMBER OF SPEEDS | 2 |
| ORIENTATION | Horizontal |
| OUTPUT | 1/4, 1/8 HP |
| OVERLOAD | Automatic |

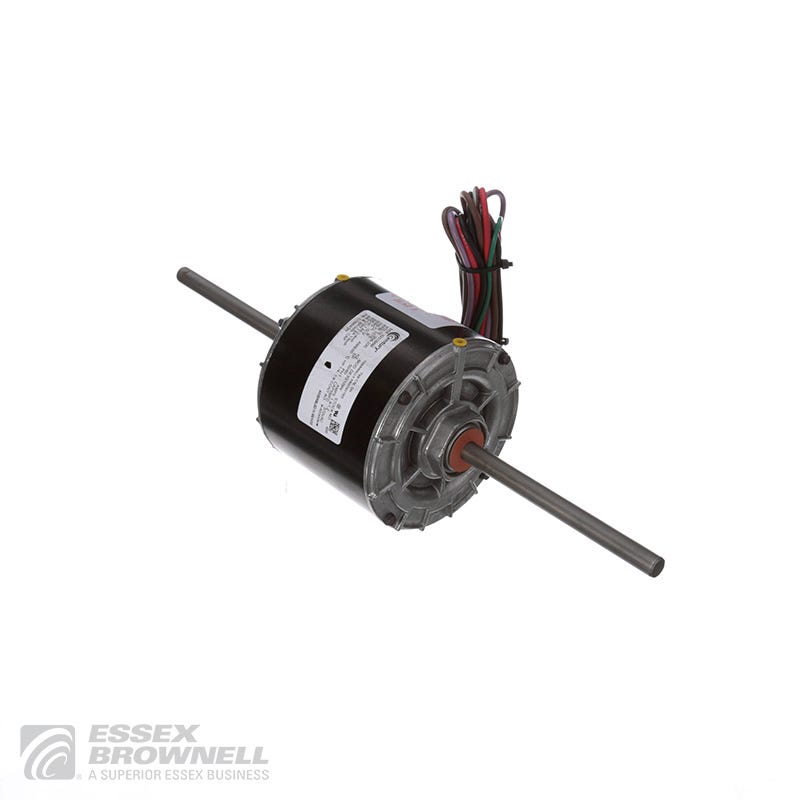

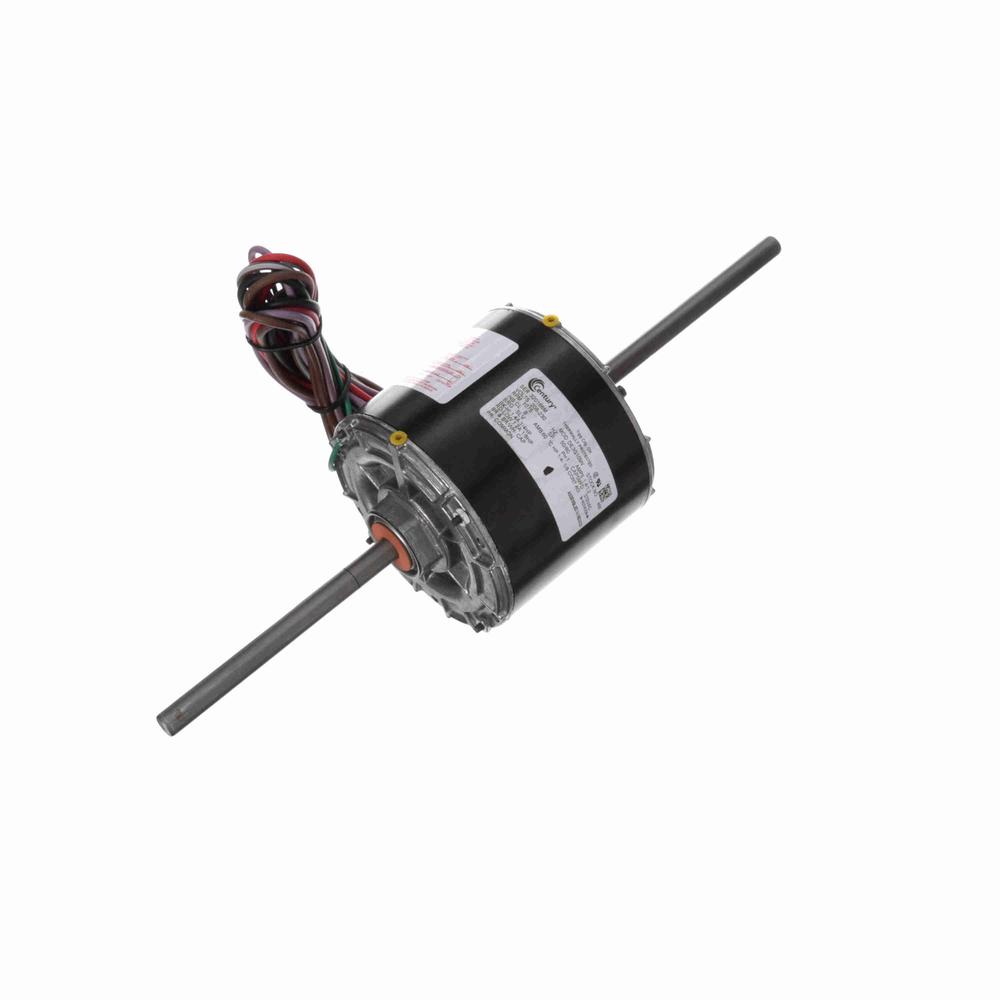

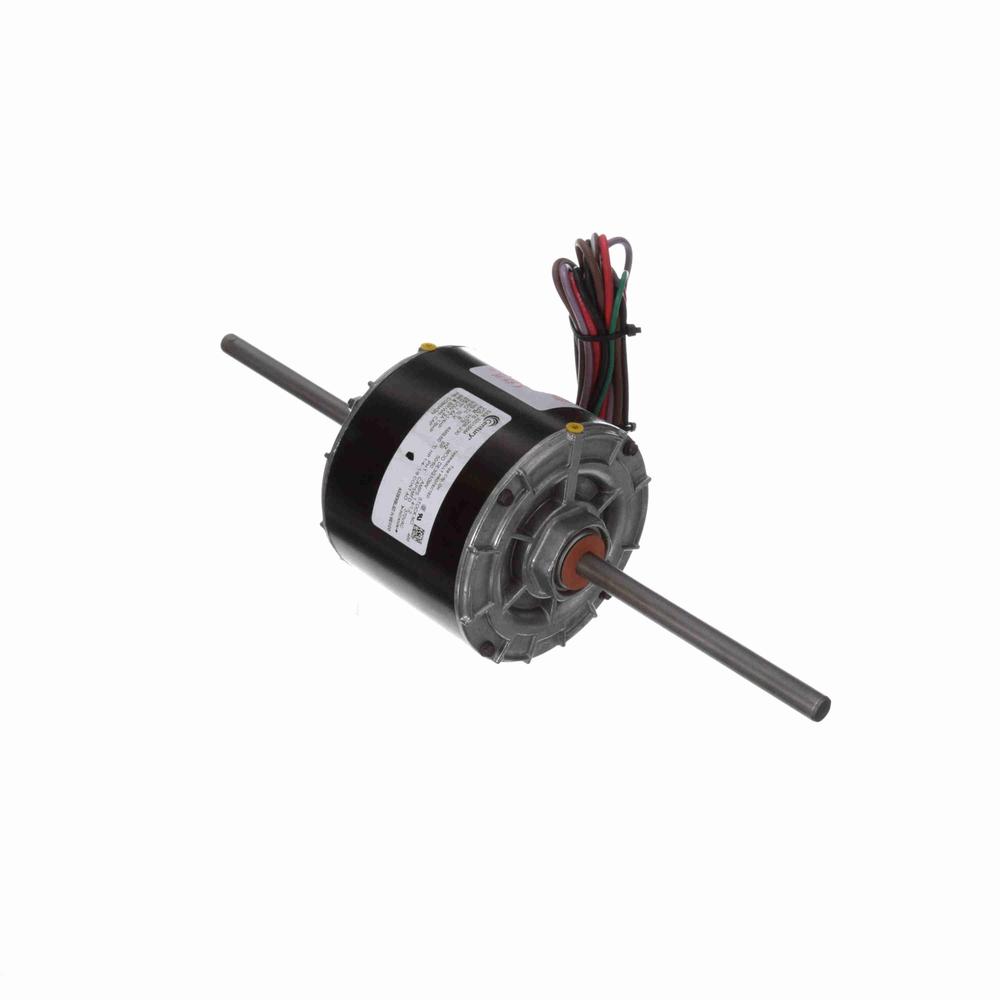

| PRODUCT NAME | 1/4HP 5 DIA. DLB SHAFTPSC TEAO 230V |
| PRODUCT SKU | STK-466 |
| ROTATION | Clockwise Lead End |
| RPM | 1075(2) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.500 IN X 6 IN |
| SHAFT DIAMETER (IN IN.) | 0.500 IN |
| SHAFT EXTENSION | 6 IN |
| SHAFT TYPE | Flat |
| SPEED | 1075 |
| SUPPLIER | Regal Beloit Epc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 208-230 V |
| WIDTH | 7.81 IN |
