| BEARING | Ball |
| BRAND | US Motors® |
| C DIMENSION | 7.6 IN |
| CATALOG NUMBER | 3196 |
| DUTY | Continuous |
| ENCLOSURE | TOTALLY ENCLOSED |
| FL AMPS | 2.4 A |
| FRAME | 48N |
| FREQUENCY | 60 HZ |
| INSULATION CLASS | B |
| KVA CODE | R |
| MANUFACTURE MODEL NUMBER | 3196 |
| MOUNTING | Flange |
| NUMBER OF POLES | 4 |
| NUMBER OF SPEEDS | 1 |
| ORIENTATION | Horizontal |
| OUTPUT | 1/8 HP |
| OVERLOAD | Manual |

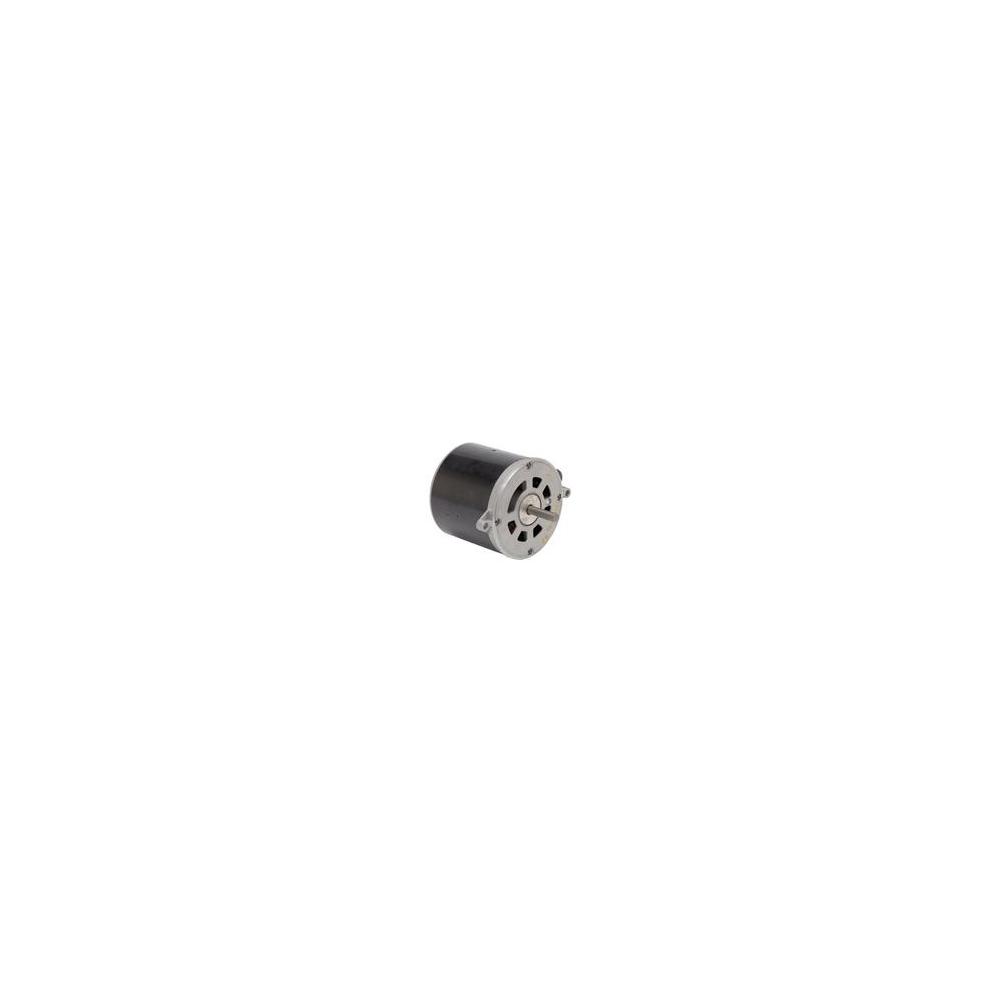

| PRODUCT NAME | 1/8,1800,115,48N,TENV,SPLIT |
| PRODUCT SKU | NM-3196 |
| ROTATION | Reversible |
| RPM | 1725(1) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.5 IN X 1.5 IN |
| SHAFT DIAMETER (IN IN.) | 0.5 IN |
| SHAFT EXTENSION | 1.5 IN |
| SPEED | 1725 |
| SUPPLIER | Nidec Motor Corporation |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 115 V |
