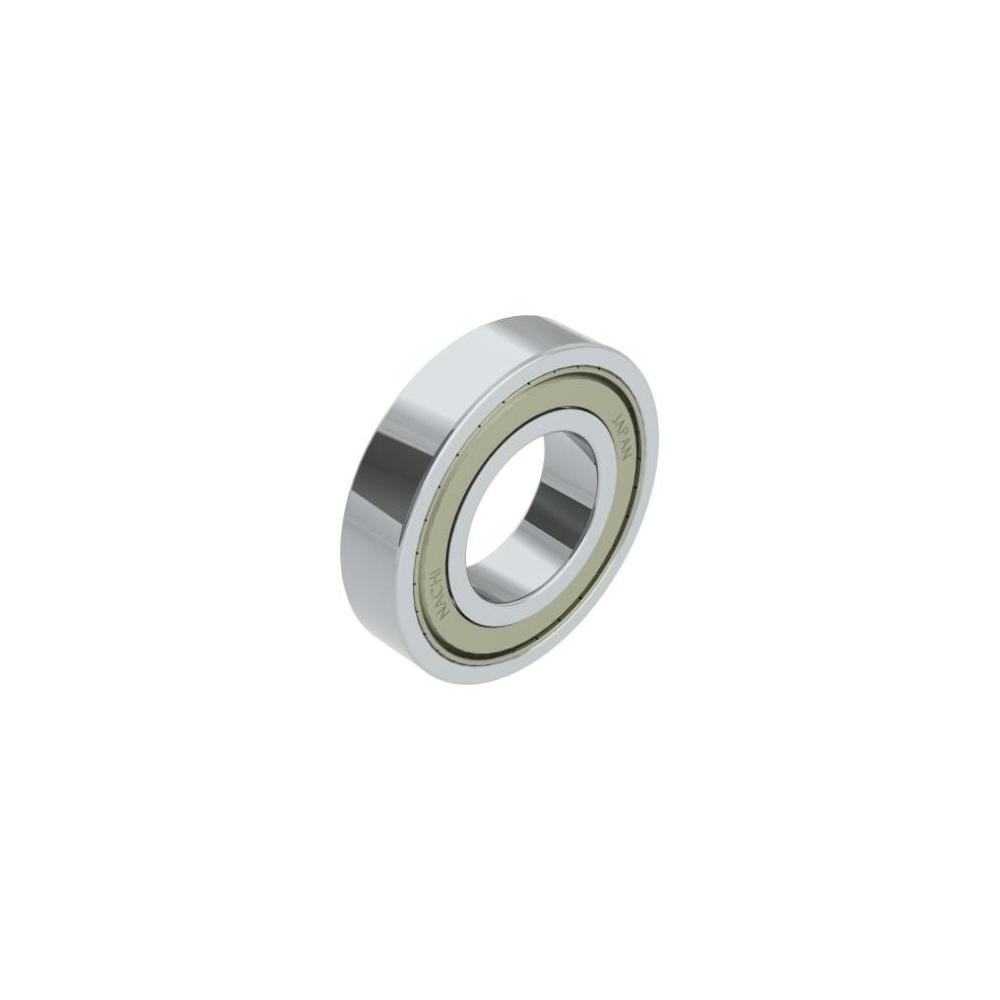

Nachi America Inc Deep Groove Radial Ball Bearing, Bore Dia 50 mm, Outer Dia 110 mm, Width 27 mm, Double Shield

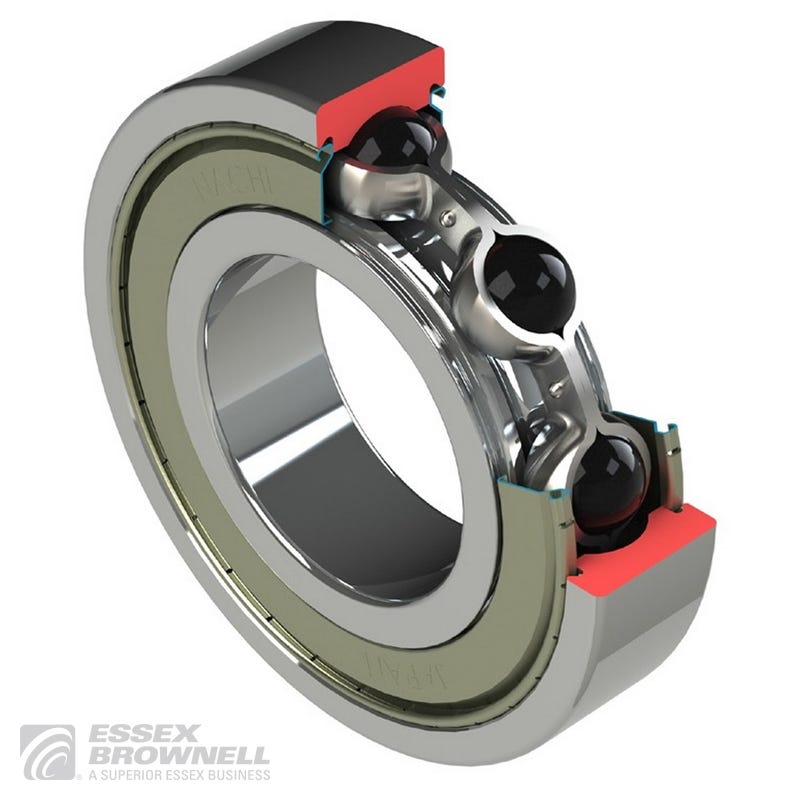

The NACHI 6310ZZEC3 deep groove ball bearing is designed for high-performance applications, featuring a single row raceway with two shields for protection against contaminants. It has an inner diameter of 50 mm, an outer diameter of 110 mm, and a width of 27 mm. The bearing is constructed with a steel cage and JIS SUJ2 steel for both the inner and outer rings, offering a dynamic load capacity of 62,000 N. It operates with a C3 internal clearance, suitable for high rotational speeds, and has a maximum operating temperature of 120°C. The bearing is filled with Chevron SRI#2 grease and is designed for radial load applications.
