Nachi Cylindrical Roller Bearing, Bore Dia 150 mm, Outer Dia 320 mm, Width 65 mm

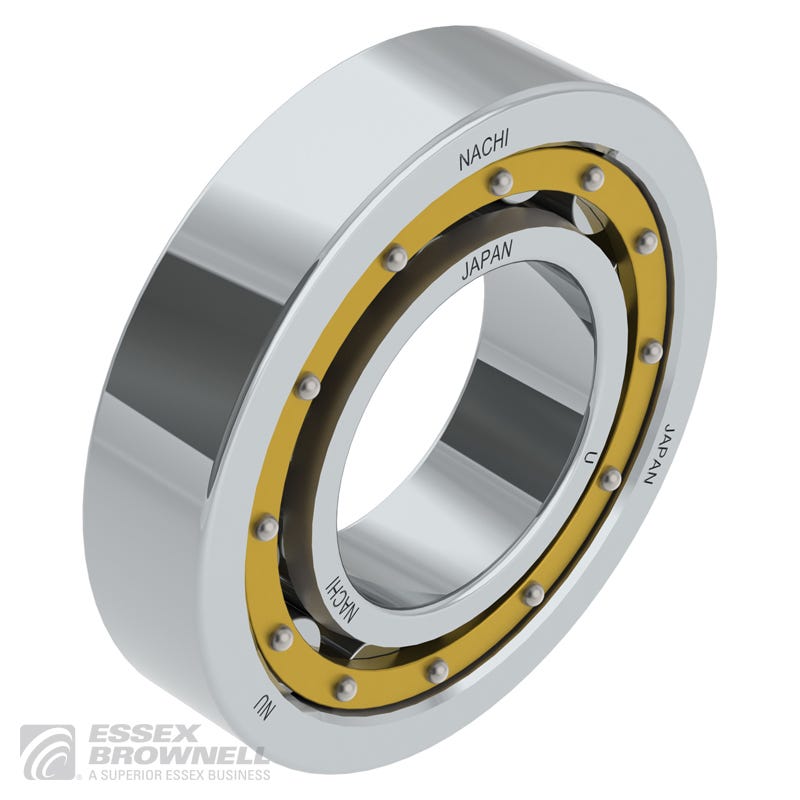

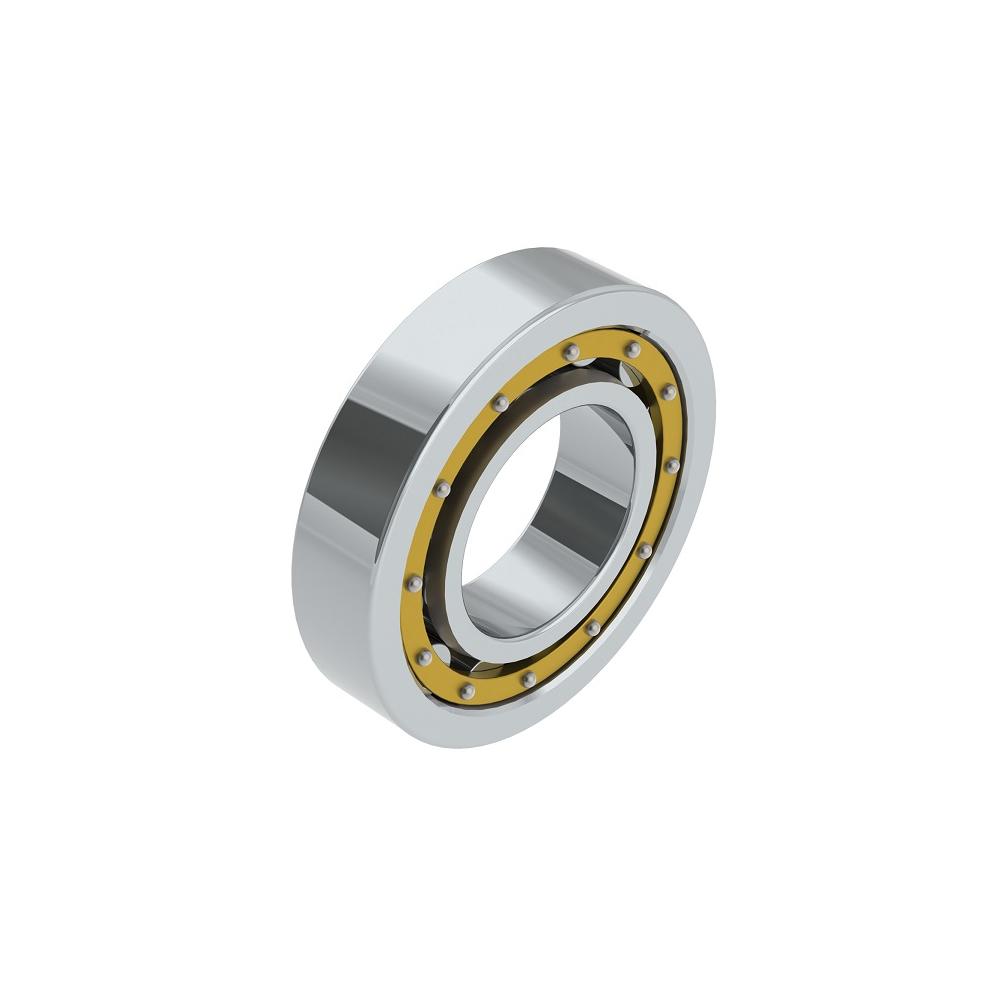

The NU330MYC3 is a single-row cylindrical roller bearing with a bore diameter of 150 mm, an outer diameter of 320 mm, and a width of 65 mm. It features a medium series design with two fixed ribs on the outer ring and no flanges on the inner ring, allowing axial displacement. The bearing uses a machined solid brass cage that guides the rollers, enhancing durability and load capacity. It offers a larger than normal radial internal clearance (C3), supporting high radial loads with dynamic load ratings around 660,000 N and static load ratings up to 805,000 N. This bearing is suitable for applications requiring rigidity and high-speed operation.
