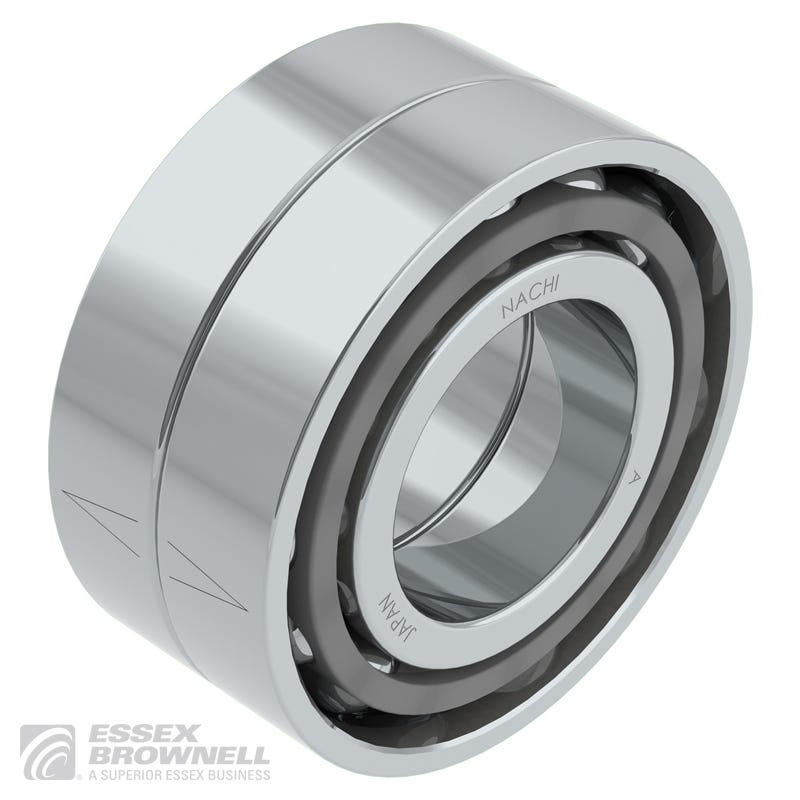

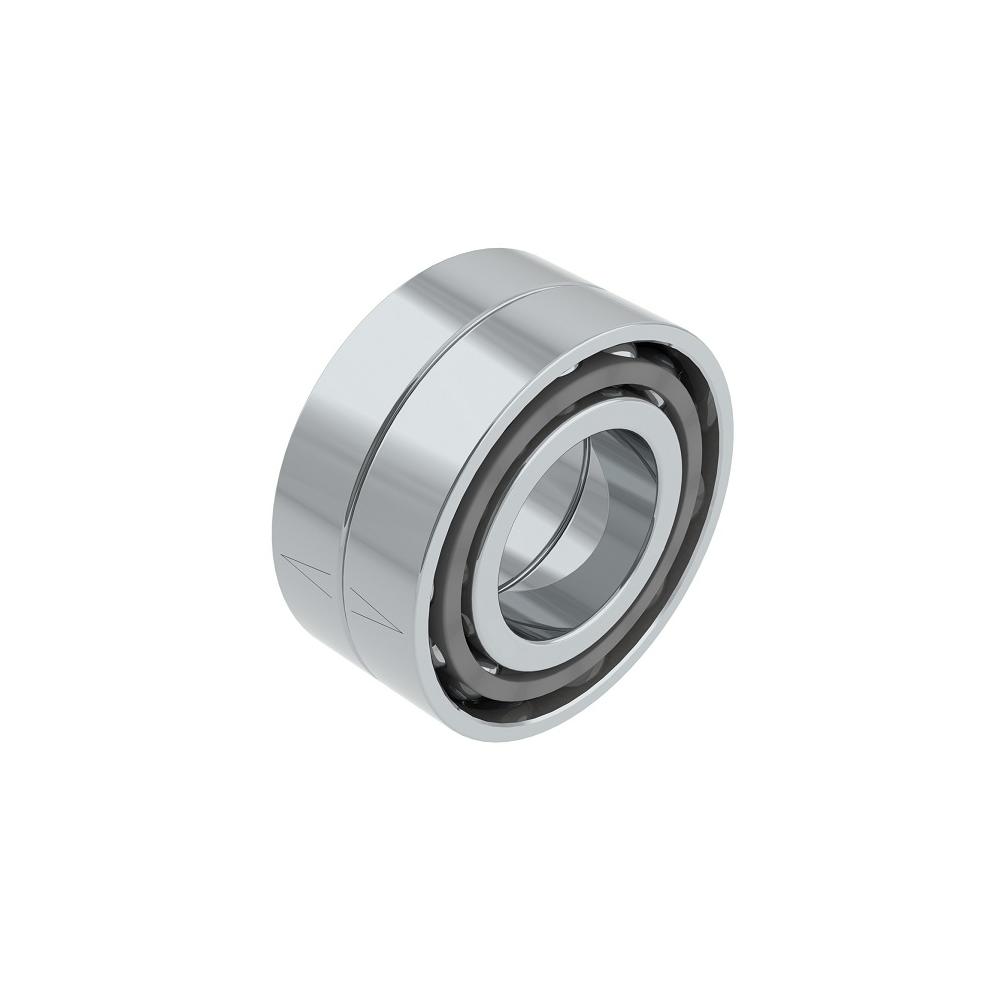

Nachi Angular Contact Ball Bearing, Bore Dia 60 mm, Outer Dia 110 mm, Width 22 mm, Open

The Nachi 7212CYDUP4 is a precision angular contact ball bearing featuring a 60 mm bore diameter, 110 mm outer diameter, and 22 mm width. It has a 15° contact angle designed to support combined axial and radial loads, making it ideal for high-performance applications. Constructed with JIS SUJ2 steel for the inner and outer rings and rolling elements, and a PA66 polyamide resin cage, it offers durability and reliability. The bearing supports a dynamic load capacity of 105,800 N and a static load capacity of 99,000 N, with an operating temperature up to 120°C. It runs at speeds up to 8,600 rpm with grease lubrication and 11,800 rpm with oil lubrication. This bearing is typically used in pairs for duplex configurations to handle axial loads in both directions.
