| AMBIENT | 40°C |
| BEARING | Ball |

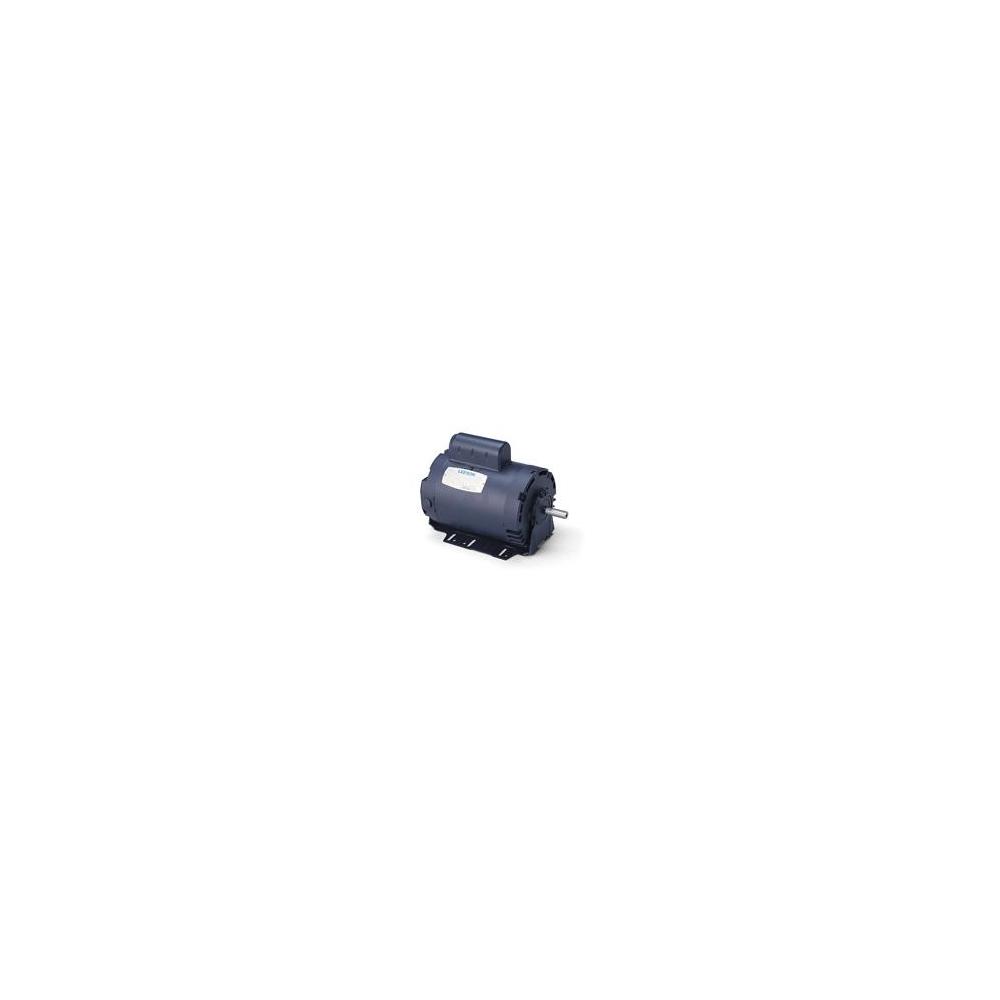

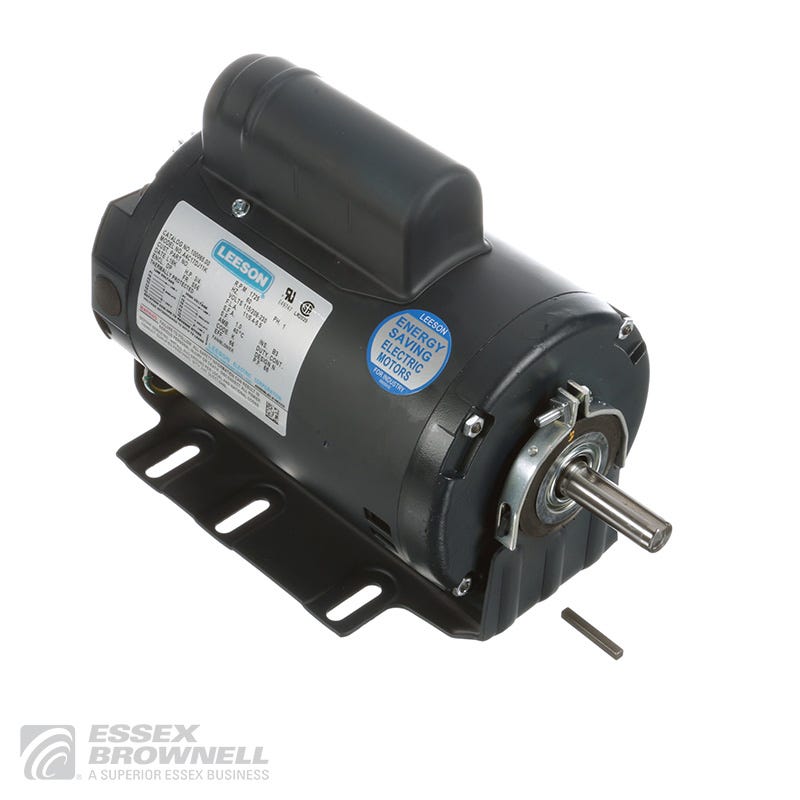

| BRAND | LEESON |
| C DIMENSION | 11.81 IN |
| CATALOG NUM | 100065 |
| CATALOG NUM STATIC | 100065 |
| CE | No |
| CSA | Yes |
| DUTY | Continuous |
| ENCLOSURE | OPEN DRIP PROOF |
| FL AMPS | 11/5.4-5.5 A |
| FRAME | 56 |
| FRAME MATERIAL | Rolled Steel |
| FRAME STATIC | 56 |
| FREQUENCY | 60 HZ |
| HEIGHT | 8.25 IN |
| HORSE POWER | 3/4 HP |
| HORSE POWER STATIC | 4-Mar |
| INSULATION CLASS | B |
| KVA CODE | K |
| LEAD TIME | 21 |
| LENGTH | 11.81 IN |
| MANUFACTURER | Leeson Electric Corp |
| MFG MODEL NUM | 100065 |
| MIN QUANTITY INCREMENT | 1 |
| MOTOR TYPE | Cap |
| MOUNTING | Resilient |
| NUMBER OF PHASES | 1 |
| NUMBER OF POLES | 4 |
| ORIENTATION | Horizontal |
| OVERLOAD | Automatic |
| PART ID | 100065 |
| PRODUCT GROUP | 3050 |
| ROTATION | Reversible |
| RPM | 1800 |
| RPM STATIC | 1725 |
| SERVICE FACTOR | 1 |
| SHAFT | 0.625 IN X 1.875 IN |
| SHAFT DIAMETER IN IN | 0.625 IN |
| SHAFT EXTENSION | 1.875 IN |
| SKU | ML-100065 |
| SPEED | 1800 |
| SUPPLIER | Leeson Electric Corp |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UOM | Each |
| UPC NUMBER | 691720004548 |
| VOLTAGE | 115/208-230 V |
| VOLTAGE STATIC | 230 |
| WEIGHT STATIC | 25 LB |
| WIDTH | 6.39 IN |
