| BEARING | Ball |
| BRAND | Marathon Electric Mfg Co |
| C DIMENSION | 9.81 IN |
| CATALOG NUMBER | X923 |
| CONNECTION DRAWING NO | A-EE9022PD |
| DUTY | Continuous |
| EFFICIENCY | Standard |
| ENCLOSURE | TOTALLY ENCLOSED AIR OVER |
| FL AMPS | 3.2 A |
| FRAME | 48Y |
| FREQUENCY | 60 HZ |
| HEIGHT | 9.38 IN |
| INSULATION CLASS | B |
| KVA CODE | B |
| LEAD TIME | 17 |
| LENGTH | 15.82 IN |
| MANUFACTURE MODEL NUMBER | X923 |
| MANUFACTURER | Marathon Electric Mfg Co |
| MOTOR TYPE | Psc |
| MOUNTING | Rigid Base |
| NOMINAL EFFICIENCY | 59.5 |
| NUMBER OF POLES | 6 |
| NUMBER OF SPEEDS | 2 |
| ORIENTATION | Horizontal |
| OUTPUT | 1/4 HP |
| OVERLOAD | Automatic |

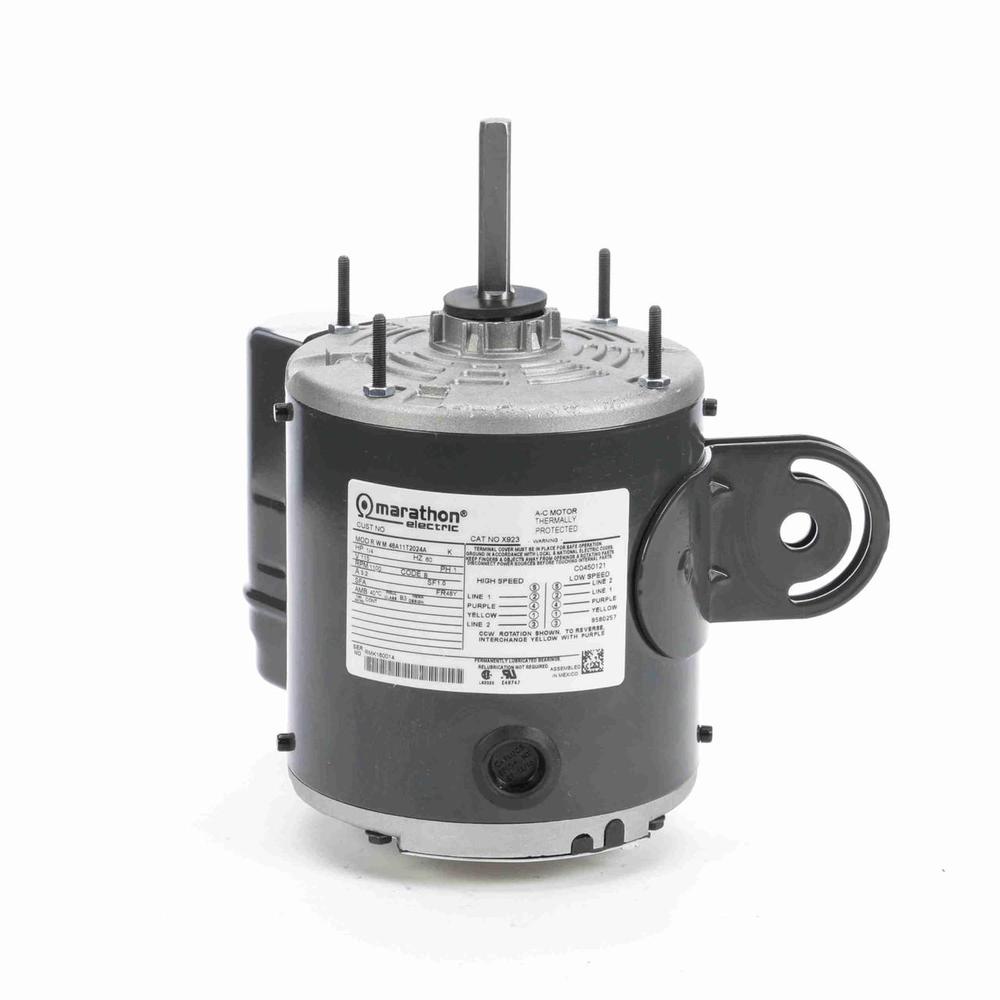

| PRODUCT NAME | 1/4,1200(2),115,48Y,TEAO,PSC, |
| PRODUCT SKU | MAR-X923 |
| ROTATION | Selective Counterclockwise |
| RPM | 1100(2) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.5 IN X 2.56 IN |
| SHAFT DIAMETER (IN IN.) | 0.5 IN |
| SHAFT EXTENSION | 2.56 IN |
| SHAFT TYPE | Single Special Extension |
| SPEED | 1100 |
| SUPPLIER | Marathon Electric Mfg Co |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 115 V |
| WIDTH | 12.56 IN |
