| BEARING | Ball |
| BRAND | Marathon Electric Mfg Co |
| CATALOG NUMBER | X469 |
| DUTY | Continuous |
| EFFICIENCY | Standard |
| ENCLOSURE | TOTALLY ENCLOSED NON VENTILATED |
| FL AMPS | 4.2-3.65 A |
| FRAME | 48Y |
| FREQUENCY | 60 HZ |
| INSULATION CLASS | B |
| KVA CODE | B |
| LEAD TIME | 21 |
| MANUFACTURE MODEL NUMBER | X469 |
| MANUFACTURER | Marathon Electric Mfg Co |
| MOTOR TYPE | Psc |
| MOUNTING | Extended Studs - Footless |
| NOMINAL EFFICIENCY | 69.8 |
| NUMBER OF POLES | 6 |
| NUMBER OF SPEEDS | 1 |
| ORIENTATION | Horizontal |
| OUTPUT | 3/4 HP |
| OVERLOAD | Automatic |

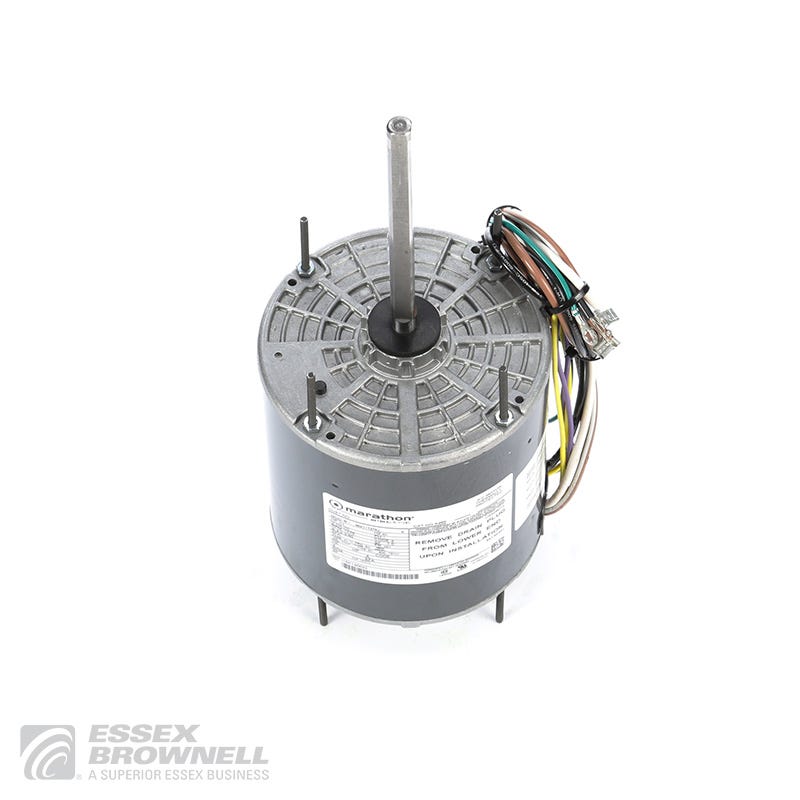

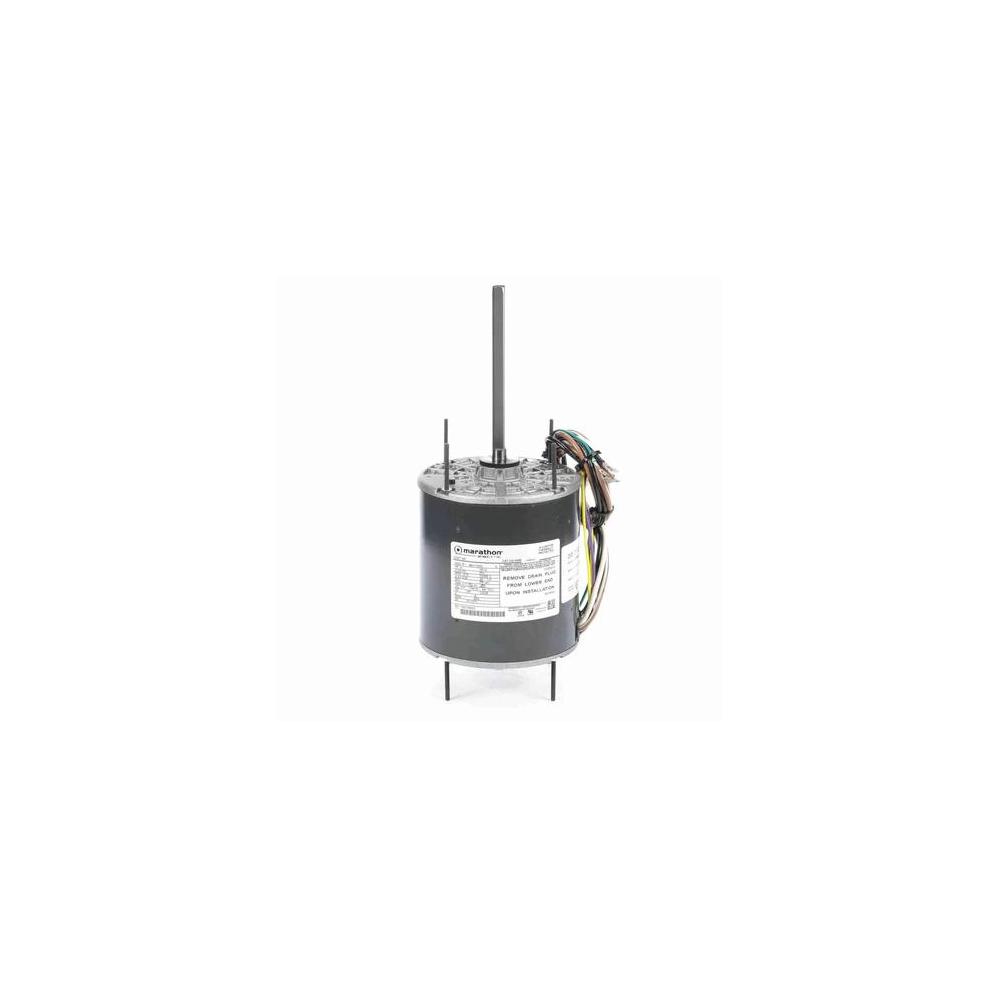

| PRODUCT NAME | 3/4,1200(2),208-230,48Y,TENV,PSC, |
| PRODUCT SKU | MAR-X469 |
| ROTATION | Reversible |
| RPM | 1075(1) |
| SERVICE FACTOR | 1 |
| SHAFT DIAMETER (IN IN.) | 0.5 IN |
| SHAFT EXTENSION | 6 IN |
| SHAFT TYPE | Single Special Extension |
| SPEED | 1075 |
| SUPPLIER | Marathon Electric Mfg Co |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 208-230/460 V |
