| AMBIENT | 40 °C |
| BEARING | Ball |

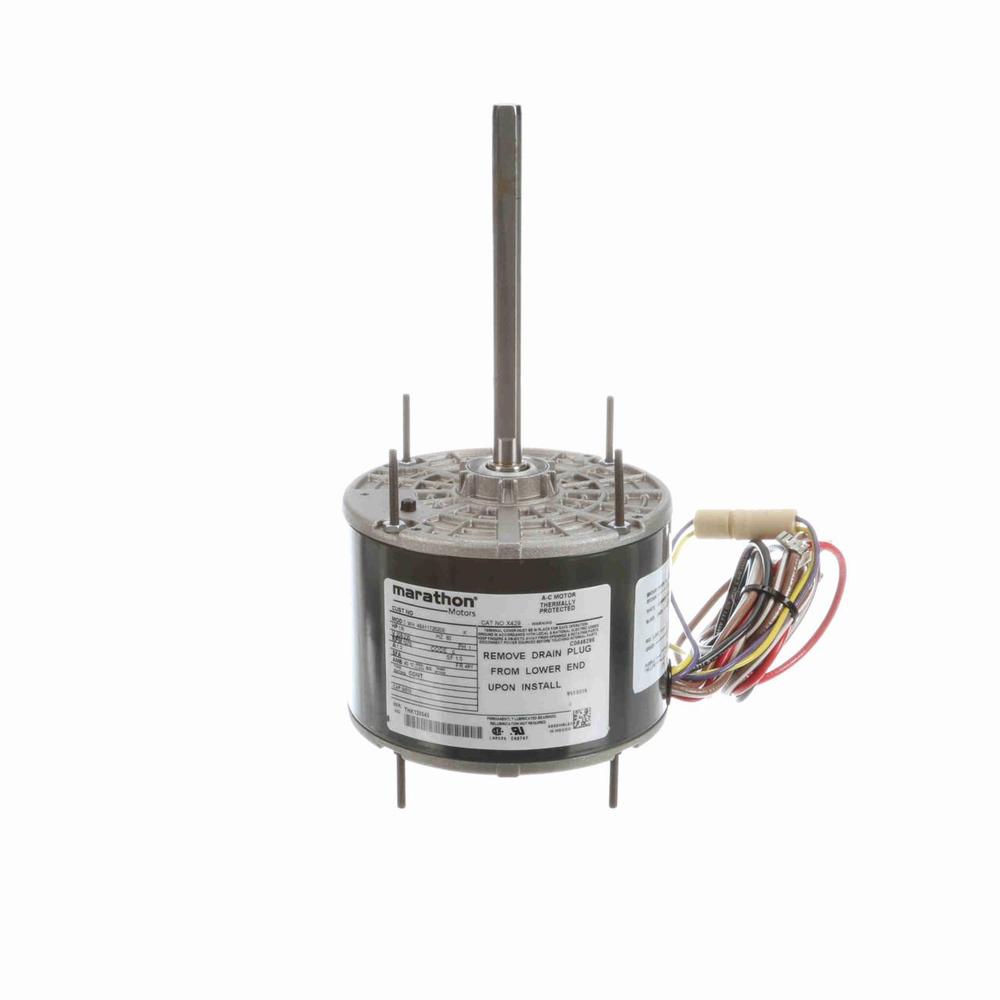

| BRAND | Marathon Electric Mfg Co |
| C DIMENSION | 10.5 IN |
| CATALOG NUM | X429 |
| CE | No |
| CONNECTION DRAWING NO | 6906494 |
| COUNTRY OF ORIGIN | Mexico |
| CSA | Yes |
| DUTY | Continuous |
| EFFCIENCY | Standard |
| ENCLOSURE | TOTALLY ENCLOSED AIR OVER |
| FL AMPS | 1.3 A |
| FRAME | 48Y |
| FRAME LENGTH | 3.5 IN |
| FRAME MATERIAL | Rolled Steel |
| FREQUENCY | 60 HZ |
| HEIGHT | 6.94 IN |
| HORSE POWER | 1/6 HP |
| INSULATION CLASS | B |
| KVA CODE | C |
| LEAD TIME | 21 |
| LENGTH | 13.25 IN |
| MANUFACTURER | Marathon Electric Mfg Co |
| MFG MODEL NUM | X429 |
| MIN QUANTITY INCREMENT | 1 |
| MOTOR TYPE | Psc |
| MOUNTING | Rigid Base |
| NOMINAL EFFICIENCY | 62.4 |
| NUMBER OF PHASES | 1 |
| NUMBER OF POLES | 6 |
| NUMBER OF SPEEDS | 2 |
| ORIENTATION | Horizontal |
| OVERLOAD | Automatic |
| PART ID | 048A11T2020 |
| PRODUCT GROUP | 3050 |
| ROTATION | Selective Counterclockwise |
| RPM | 1075(2) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.5 IN X 6.06 IN |
| SHAFT DIAMETER IN IN | 0.5 IN |
| SHAFT EXTENSION | 6.06 IN |
| SHAFT TYPE | Single Special Extension |
| SKU | MAR-X429 |
| SPEED | 1075 |
| STARTING TYPE | Across The Line |
| STATUS | Active |
| SUPPLIER | Marathon Electric Mfg Co |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UOM | Each |
| UPC NUMBER | 722856037824 |
| VOLTAGE | 208-230 V |
| WEIGHT STATIC | 11 LB |
| WIDTH | 7 IN |
