| BEARING | Ball |
| BRAND | Marathon Electric Mfg Co |
| C DIMENSION | 11.35 IN |
| CATALOG NUMBER | G143 |
| DUTY | Continuous |
| EFFICIENCY | Standard |
| ENCLOSURE | OPEN DRIP PROOF |
| FL AMPS | 5-4.8/2.4 & 4.2/2.1-2.5 A |
| FRAME | 56 |
| FREQUENCY | 60/50 HZ |
| INSULATION CLASS | B |
| KVA CODE | K |
| LEAD TIME | 21 |
| MANUFACTURE MODEL NUMBER | G143 |
| MANUFACTURER | Marathon Electric Mfg Co |
| MOTOR TYPE | 3Ph |
| MOUNTING | Resilient Base |
| NOMINAL EFFICIENCY | 80 & 77.5 |
| NUMBER OF POLES | 4 |
| NUMBER OF SPEEDS | 1 |
| ORIENTATION | Horizontal |
| OUTPUT | 1-1/2 HP, 1 HP |
| OVERLOAD | Automatic |

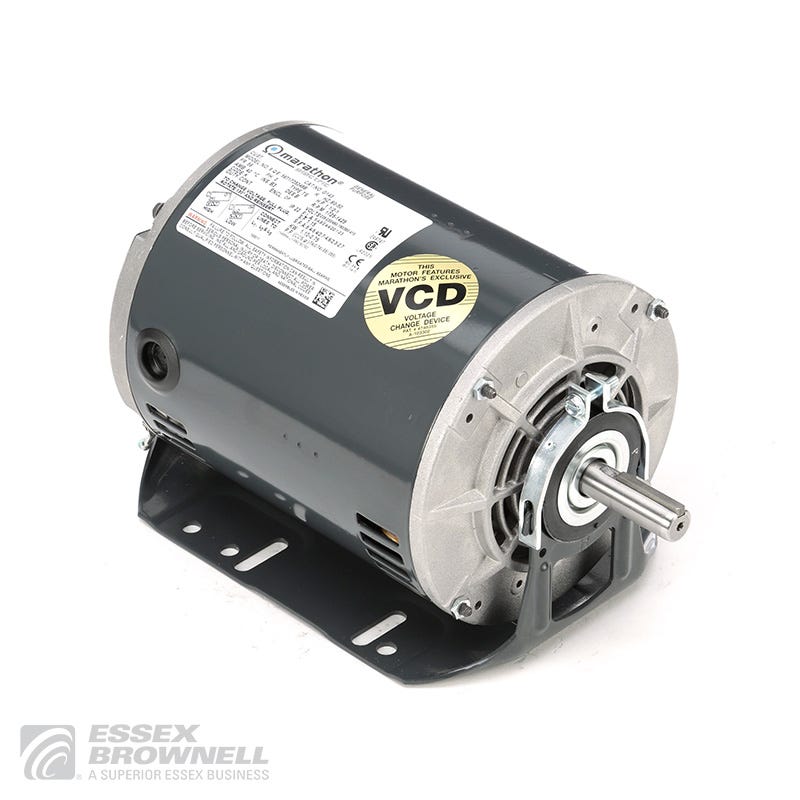

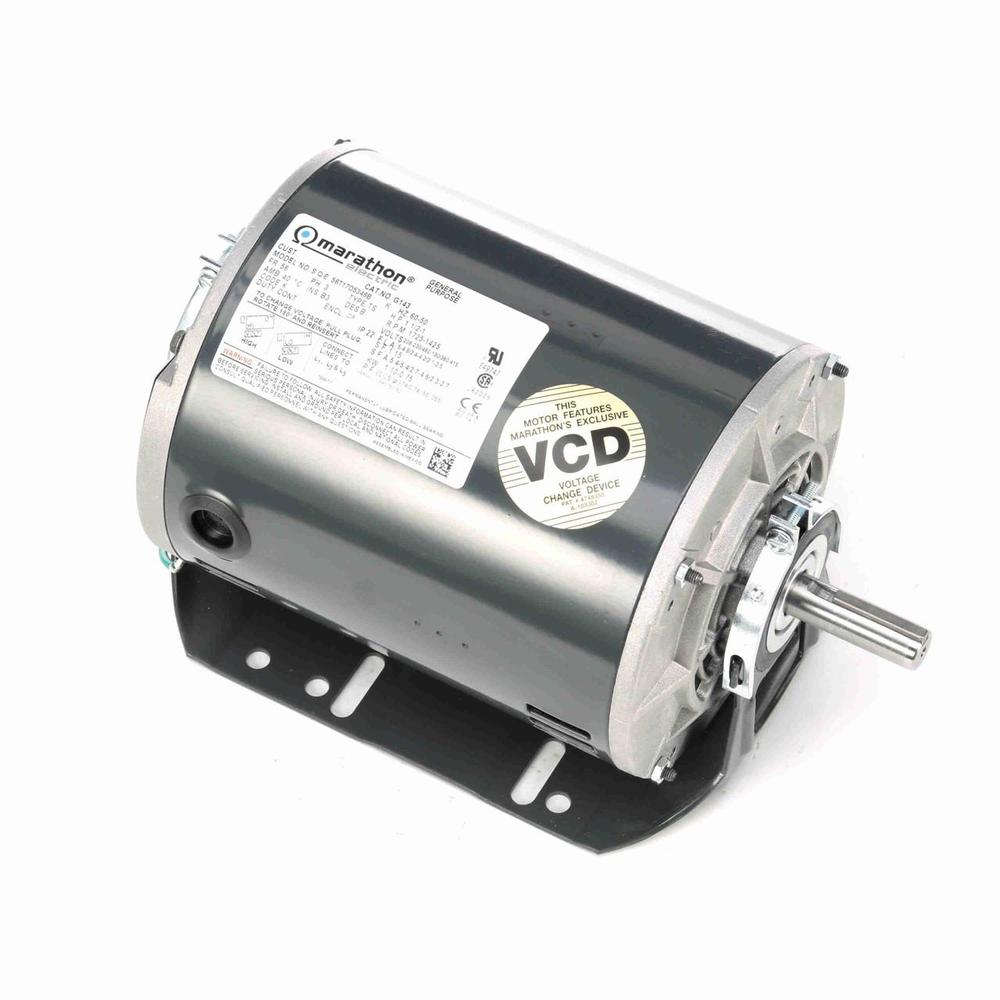

| PRODUCT NAME | 1.5,1800,208-230/460,56,ODP,3PH, |
| PRODUCT SKU | MAR-G143 |
| ROTATION | Reversible |
| RPM | 1725/1425(1) |
| SERVICE FACTOR | 1.15 |
| SHAFT | 0.625 IN X 1.91 IN |
| SHAFT DIAMETER (IN IN.) | 0.625 IN |
| SHAFT EXTENSION | 1.91 IN |
| SHAFT TYPE | T |
| SPEED | 1725/1425 |
| SUPPLIER | Marathon Electric Mfg Co |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 208-230/460 V & 190/380-415 V |
