| BEARING | Ball |
| BRAND | Century |
| C DIMENSION | 11.05 IN |
| CATALOG NUMBER | F261 |
| CONNECTION DRAWING NO | 17050813.PCX |
| DUTY | Continuous |
| EFFICIENCY | Standard |
| ENCLOSURE | OPEN |
| FL AMPS | 9.6/4.8 A |
| FRAME | A56Y |
| FREQUENCY | 60 HZ |
| HEIGHT | 10.5 IN |
| INSULATION CLASS | B |
| LEAD TIME | 17 |
| LENGTH | 15 IN |
| MANUFACTURE MODEL NUMBER | F261 |
| MANUFACTURER | Regal Beloit Epc |
| MOTOR TYPE | Split Ph |
| MOUNTING | Round |
| NUMBER OF POLES | 4 |
| NUMBER OF SPEEDS | 1 |
| OUTPUT | 3/4 HP |
| OVERLOAD | Automatic |

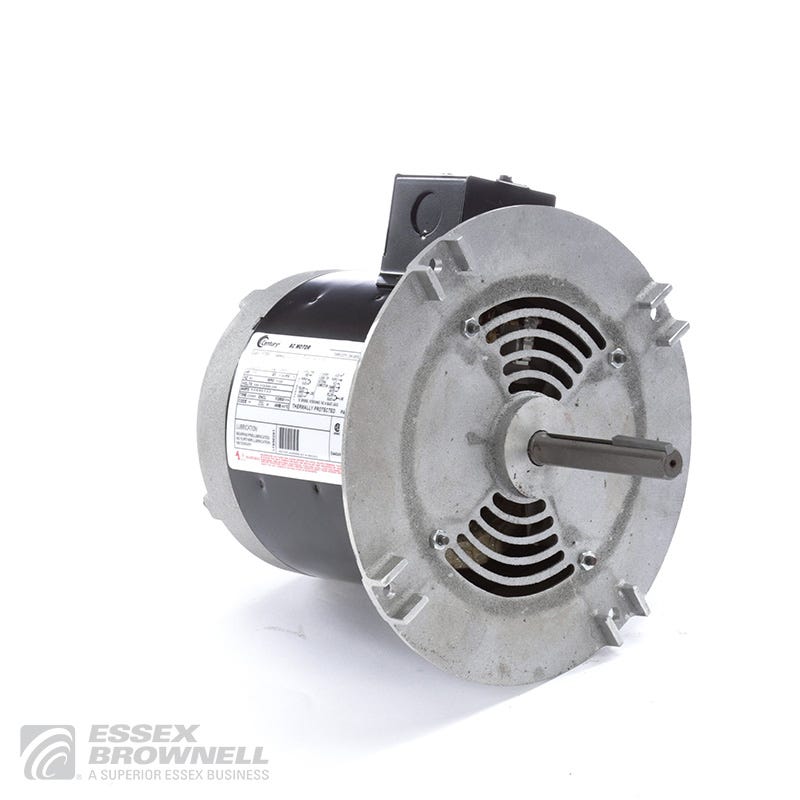

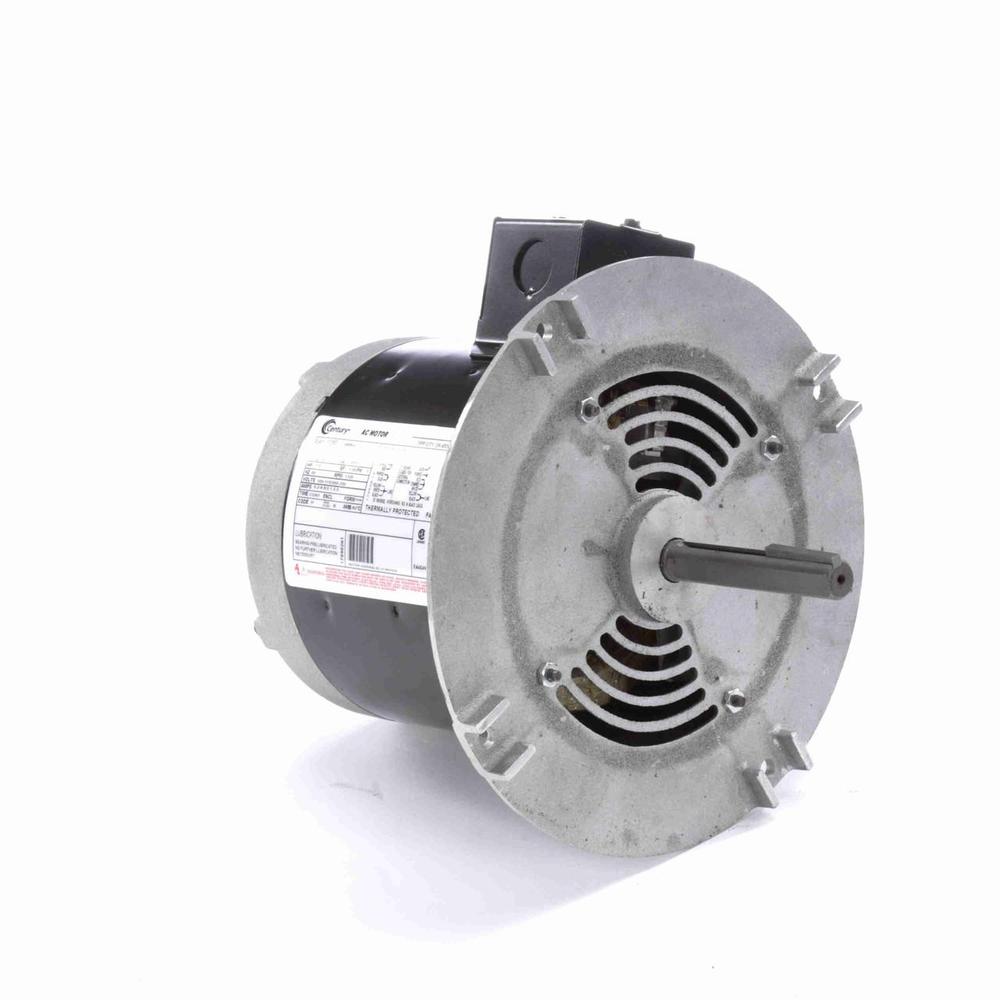

| PRODUCT NAME | 3/4 HP 1800 CONV OVEN A56Y |
| PRODUCT SKU | CM-F261 |
| ROTATION | Reversible Clockwise |
| RPM | 1725(1) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.625 IN X 3.5 IN |
| SHAFT DIAMETER (IN IN.) | 0.625 IN |
| SHAFT EXTENSION | 3.5 IN |
| SHAFT TYPE | Flat |
| SPEED | 1725 |
| SUPPLIER | Regal Beloit Epc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 115/230 V |
| WIDTH | 13 IN |
