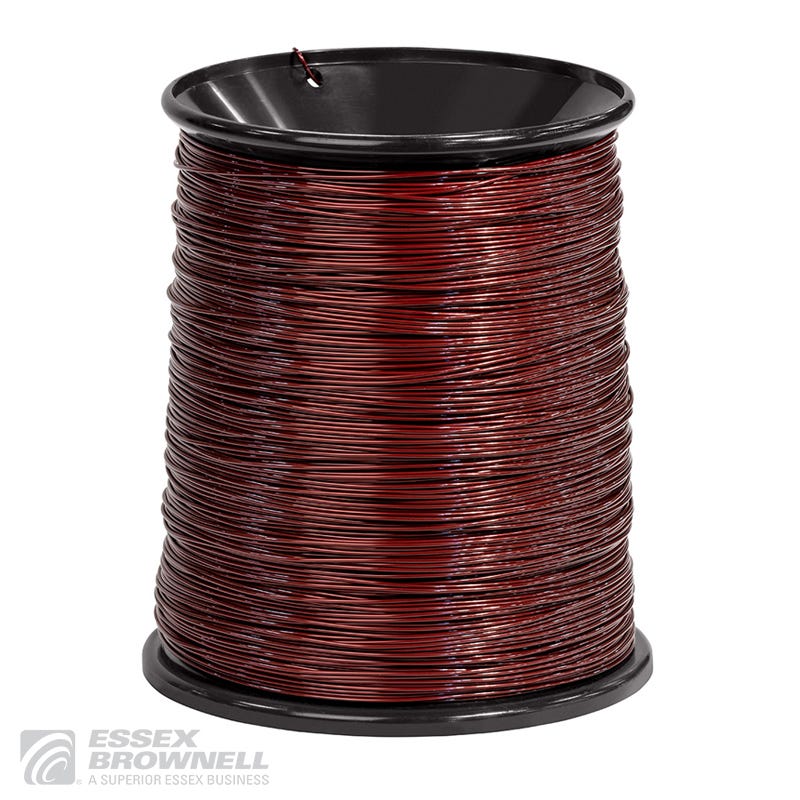

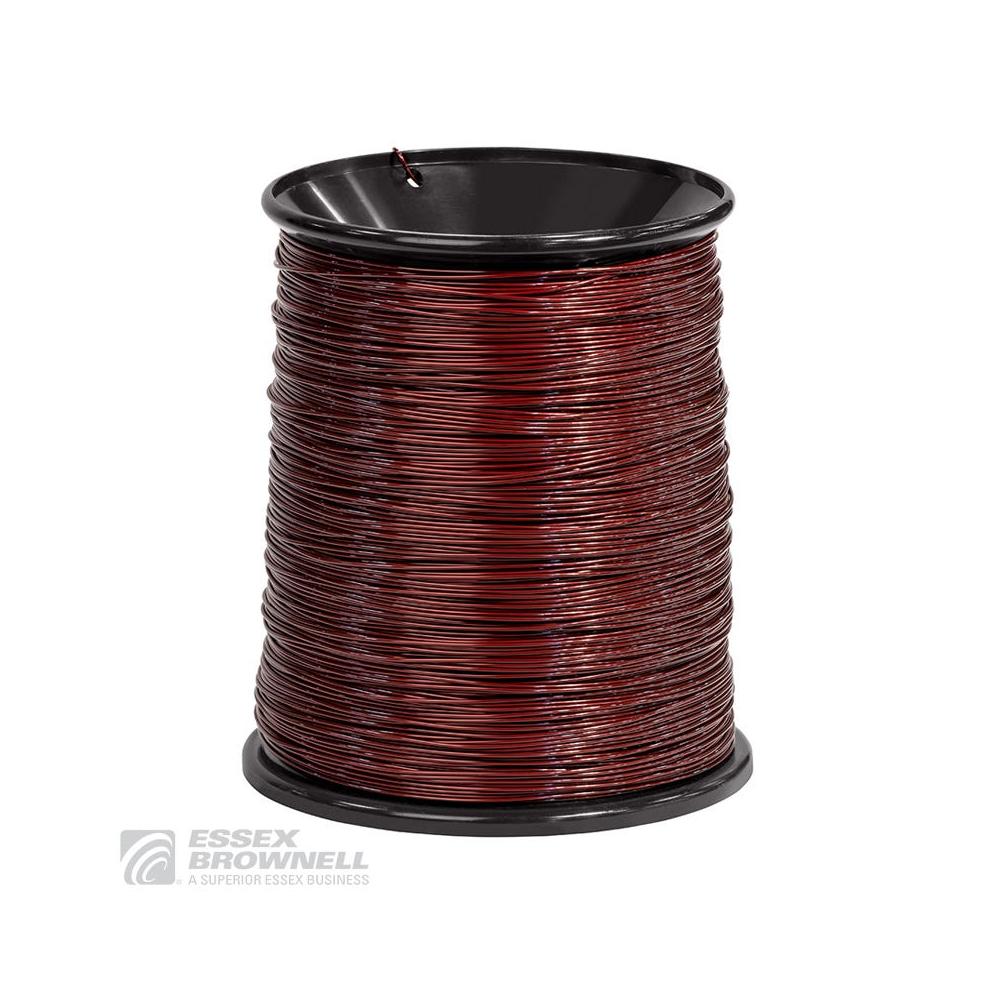

16 AWG, Round, Heavy, NEMA Essex Ultrashield® Plus (MW 35-C), Polyester-Polyamideimde, 200°C, Natural, Copper Magnet Wire

16 AWG, Round, Heavy, NEMA Essex Ultrashield® Plus (MW 35-C), Polyester-Polyamideimde, 200°C, Natural, Copper Magnet Wire

SKU:C276GX00160013A

UOM:LB

Contact Us For Pricing

AWG ROUND	16
COLOR	Natural
INSULATION BUILD	Heavy
INSULATION MATERIAL	Polyester-Polyamideimde
NEMA	Essex Ultrashield® Plus (MW 35-C)
NOMINAL WEIGHT	75 LB
PACKAGING	Tf 80 Pail
PRICE-BREAKOUT	Yes
PRODUCT NAME	Heavy Build UltraShieldÂ® Plus on TF80 Magna-Pail â€“ 16 AWG â€“ MW-35C
PRODUCT SKU	C276GX00160013A
SHAPE	Round
SUPPLIER	Essex
TEMP	200°C
UNIT OF MEASURE	LB
