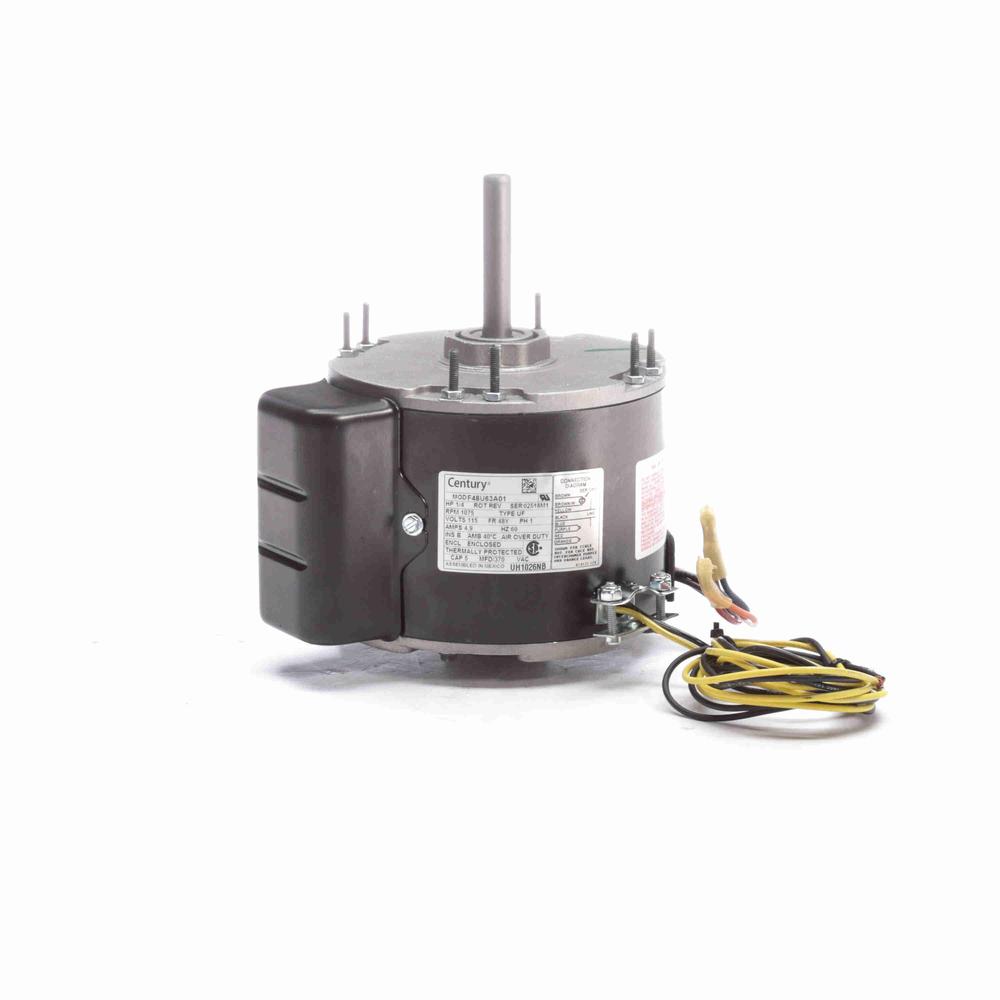

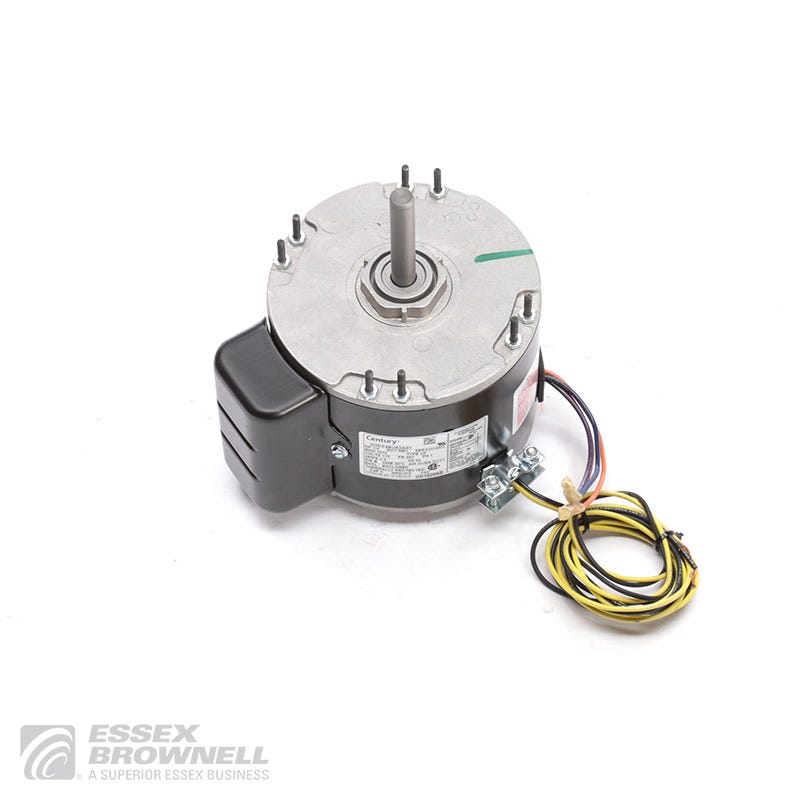

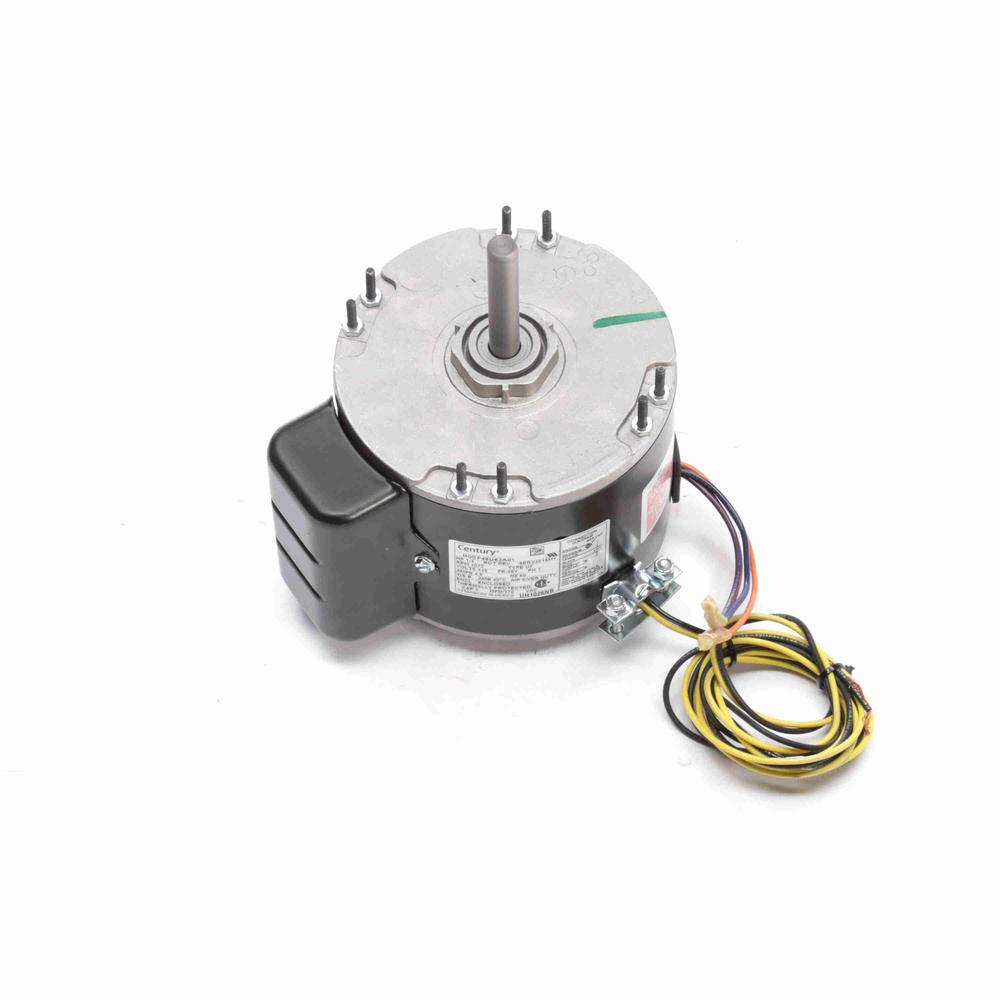

| BEARING | Ball |
| BRAND | Century |
| C DIMENSION | 7.79 IN |
| CATALOG NUMBER | UH1026NB |
| CONNECTION DRAWING NO | 614131-124 |
| DUTY | Air Over |
| EFFICIENCY | Standard |
| ENCLOSURE | TOTALLY ENCLOSED |
| FL AMPS | 4.9 A |
| FRAME | 48Y |
| FREQUENCY | 60 HZ |
| HEIGHT | 7 IN |
| INSULATION CLASS | B |
| LEAD TIME | 21 |
| LENGTH | 11 IN |
| MANUFACTURE MODEL NUMBER | UH1026NB |
| MANUFACTURER | Regal Beloit Epc |
| MOTOR TYPE | Psc |
| MOUNTING | Extended Studs |
| NUMBER OF POLES | 6 |
| NUMBER OF SPEEDS | 1 |
| ORIENTATION | Horizontal |
| OUTPUT | 1/4 HP |
| OVERLOAD | Automatic |
| PRODUCT NAME | 1/4,1075,115,48,TEAO,PSC |
| PRODUCT SKU | UH1026NB |
| ROTATION | Reversible |
| RPM | 1075(1) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.500 IN X 3 IN |
| SHAFT DIAMETER (IN IN.) | 0.500 IN |
| SHAFT EXTENSION | 3 IN |
| SHAFT TYPE | Flat |
| SPEED | 1075 |
| SUPPLIER | Regal Beloit Epc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 115 V |
| WIDTH | 7.5 IN |
