| AMBIENT | 40°C |
| BEARING | Ball |
| BRAND | Century |
| C DIMENSION | 7.36 IN |

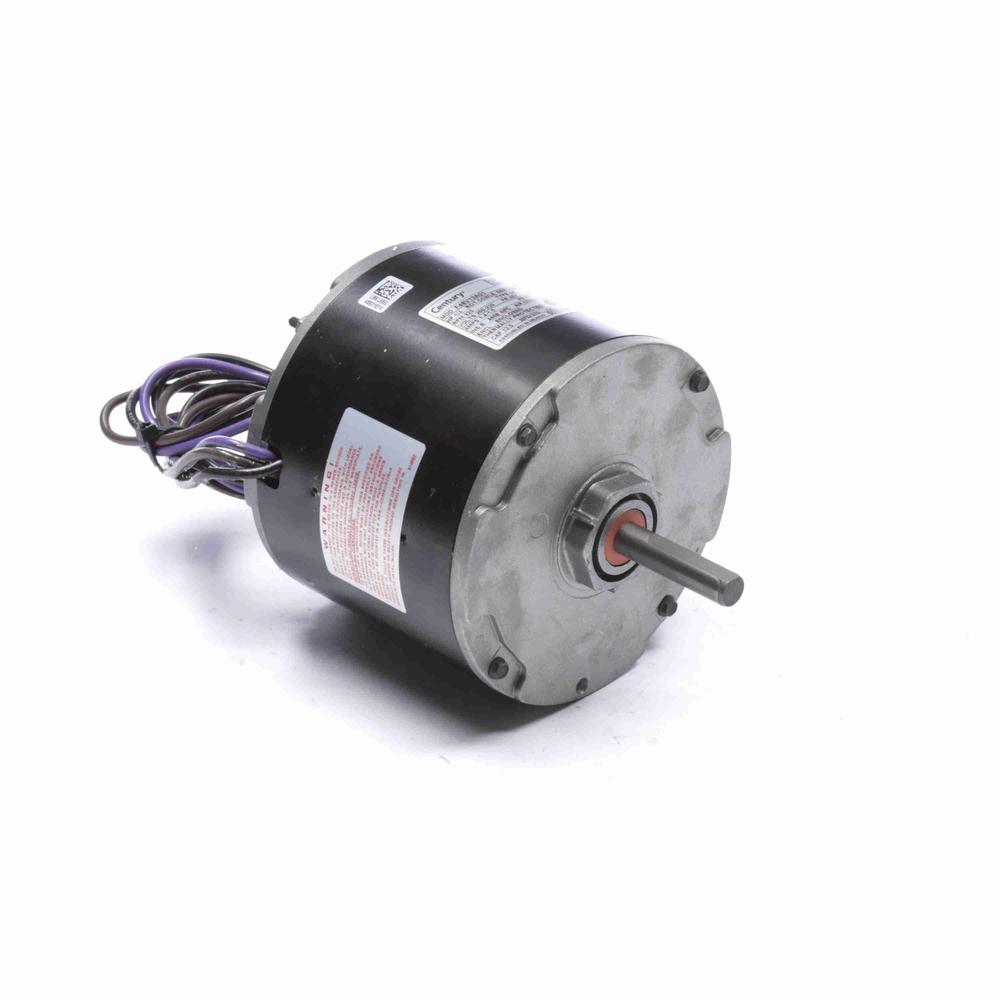

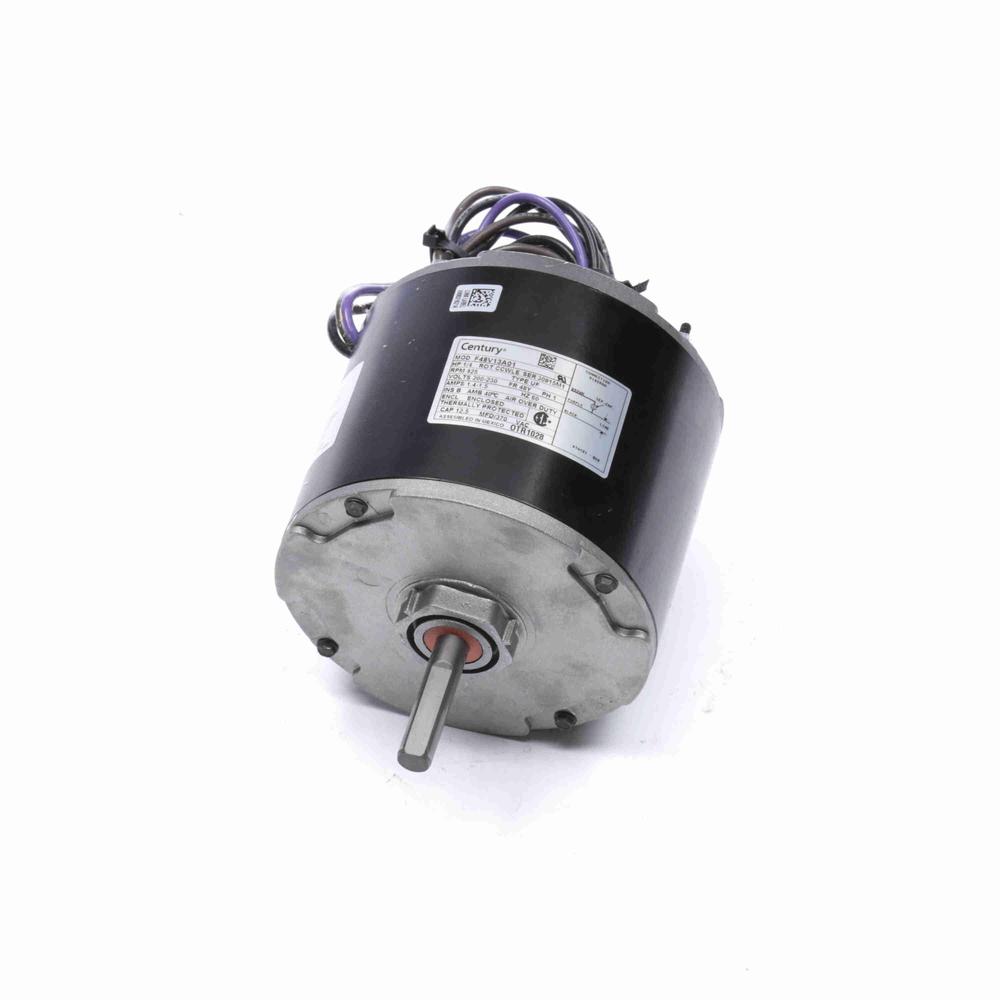

| CATALOG NUM | OTR1028 |
| CE | No |
| CONNECTION DRAWING NO | 614131-030 |
| CSA | Yes |
| DUTY | Air Over |
| EFFCIENCY | Standard |
| ENCLOSURE | TOTALLY ENCLOSED AIR OVER |
| FL AMPS | 1.4-1.5 A |
| FRAME | 48Y |
| FRAME LENGTH | 4 IN |
| FRAME MATERIAL | Rolled Steel |
| FREQUENCY | 60 HZ |
| HEIGHT | 6.81 IN |
| HORSE POWER | 1/4 HP |
| INSULATION CLASS | B |
| LEAD TIME | 17 |
| LENGTH | 8.87 IN |
| MANUFACTURER | Regal Beloit Epc |
| MFG MODEL NUM | OTR1028 |
| MIN QUANTITY INCREMENT | 1 |
| MOTOR TYPE | Psc |
| MOUNTING | Extended Studs |
| NUMBER OF PHASES | 1 |
| NUMBER OF POLES | 8 |
| NUMBER OF SPEEDS | 1 |
| ORIENTATION | Vertical Shaft Down |
| OVERLOAD | Automatic |
| PART ID | OTR1028 |
| PRODUCT GROUP | 3050 |
| ROTATION | Counterclockwise Lead End |
| RPM | 825(1) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.500 IN X 2.5 IN |
| SHAFT DIAMETER IN IN | 0.500 IN |
| SHAFT EXTENSION | 2.5 IN |
| SHAFT TYPE | Flat |
| SKU | OTR1028 |
| SPEED | 825 |
| STARTING TYPE | Across The Line |
| STATUS | Active |
| SUPPLIER | Regal Beloit Epc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UOM | Each |
| UPC NUMBER | 786674028587 |
| VOLTAGE | 200-230 V |
| WEIGHT STATIC | 14 LB |
| WIDTH | 6.81 IN |
