| BEARING | Ball |
| BRAND | Century |
| C DIMENSION | 11.17 IN |
| CATALOG NUMBER | FSE1024 |
| CONNECTION DRAWING NO | 614131-109 |
| DUTY | Air Over |
| EFFICIENCY | Standard |
| ENCLOSURE | TOTALLY ENCLOSED AIR OVER |
| FL AMPS | 1.7/1 A |
| FRAME | 48Y |
| FREQUENCY | 60 HZ |
| HEIGHT | 7.37 IN |
| INSULATION CLASS | B |
| LEAD TIME | 21 |
| LENGTH | 13.18 IN |
| MANUFACTURE MODEL NUMBER | FSE1024 |
| MANUFACTURER | Regal Beloit Epc |
| MOTOR TYPE | Psc |
| MOUNTING | Extended Studs |
| NUMBER OF POLES | 4 |
| NUMBER OF SPEEDS | 2 |
| ORIENTATION | Any |
| OUTPUT | 1/4-1/6 HP |
| OVERLOAD | Automatic |

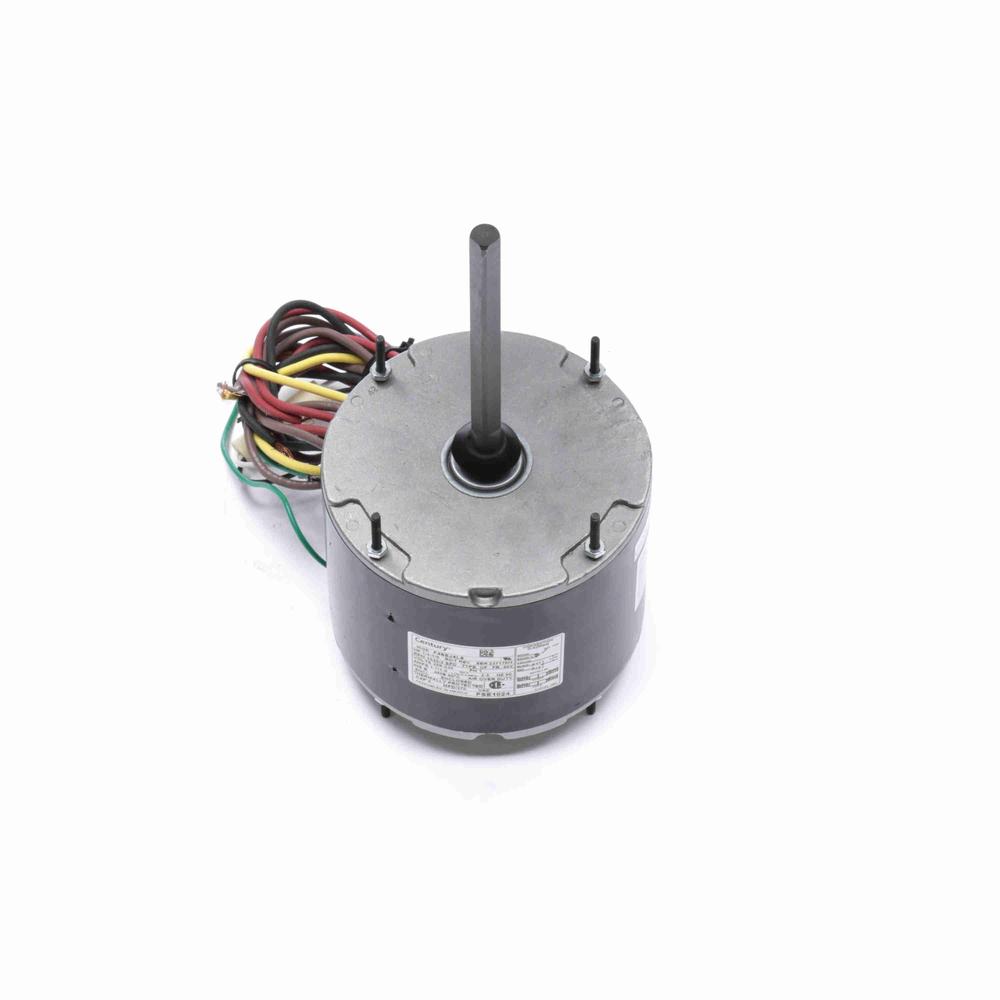

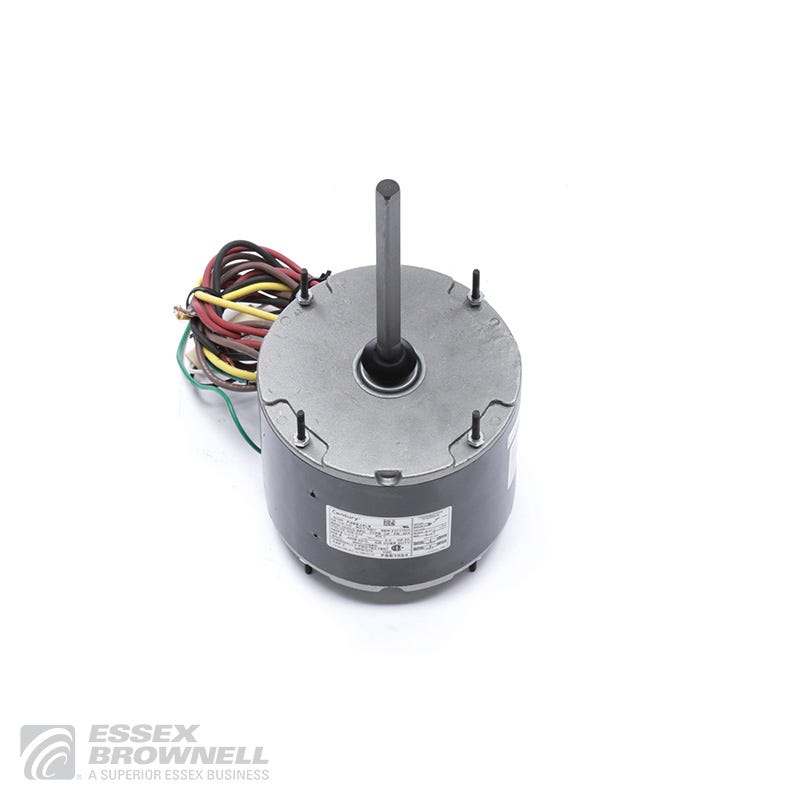

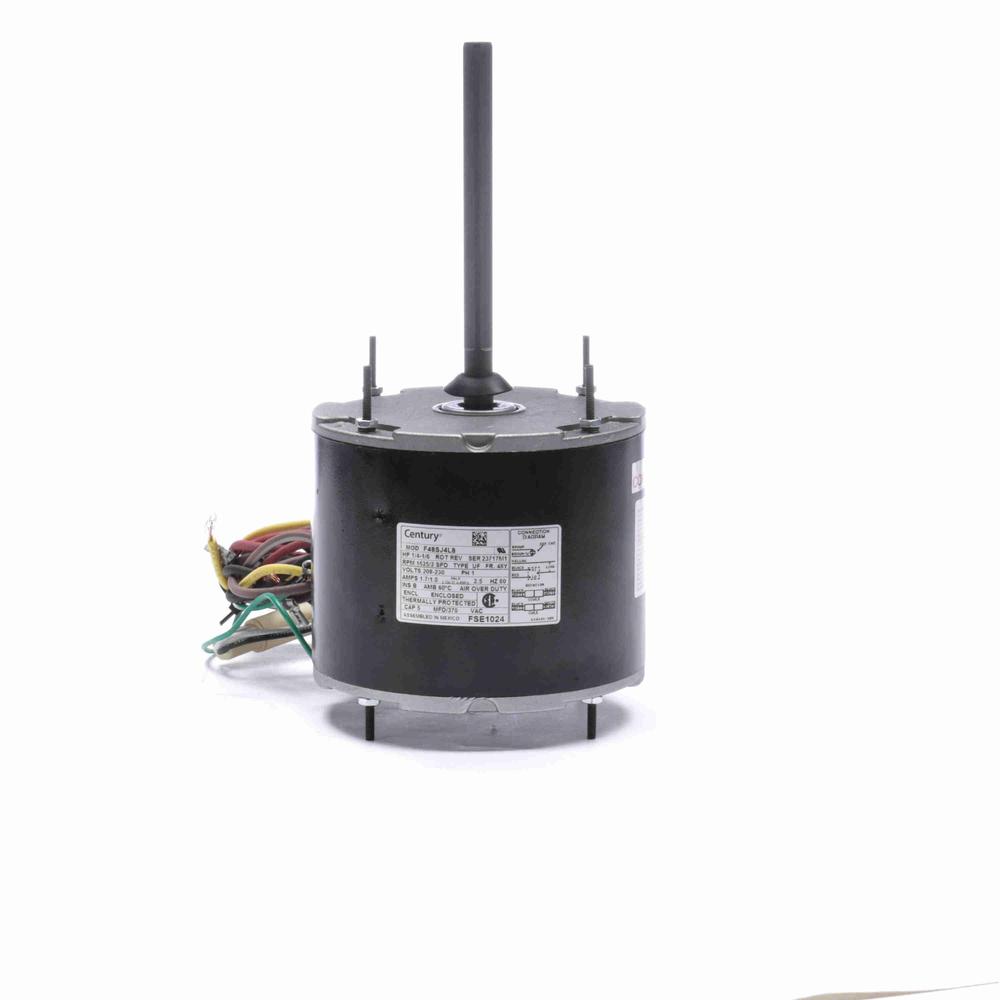

| PRODUCT NAME | 1/4HP,208/230,2 SPEED |
| PRODUCT SKU | FSE1024 |
| ROTATION | Reversible |
| RPM | 1625(2) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.500 IN X 6 IN |
| SHAFT DIAMETER (IN IN.) | 0.500 IN |
| SHAFT EXTENSION | 6 IN |
| SHAFT TYPE | Double Flat |
| SPEED | 1625 |
| SUPPLIER | Regal Beloit Epc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 208-230 V |
| WIDTH | 7.25 IN |
