| BEARING | Ball |
| BRAND | Century |
| C DIMENSION | 9.24 IN |
| CATALOG NUMBER | FEH1056S |
| CONNECTION DRAWING NO | 614131-150 |
| DUTY | Air Over |
| ENCLOSURE | TOTALLY ENCLOSED AIR OVER |
| FL AMPS | .90 A |
| FRAME | 48Y |
| FREQUENCY | 60 HZ |
| HEIGHT | 6.81 IN |
| INSULATION CLASS | B |
| LENGTH | 15.55 IN |
| MANUFACTURE MODEL NUMBER | FEH1056S |
| MOUNTING | Extended Studs |
| NUMBER OF POLES | 6 |
| NUMBER OF SPEEDS | 1 |
| ORIENTATION | Any |
| OUTPUT | 1/2 HP |
| OVERLOAD | Automatic |

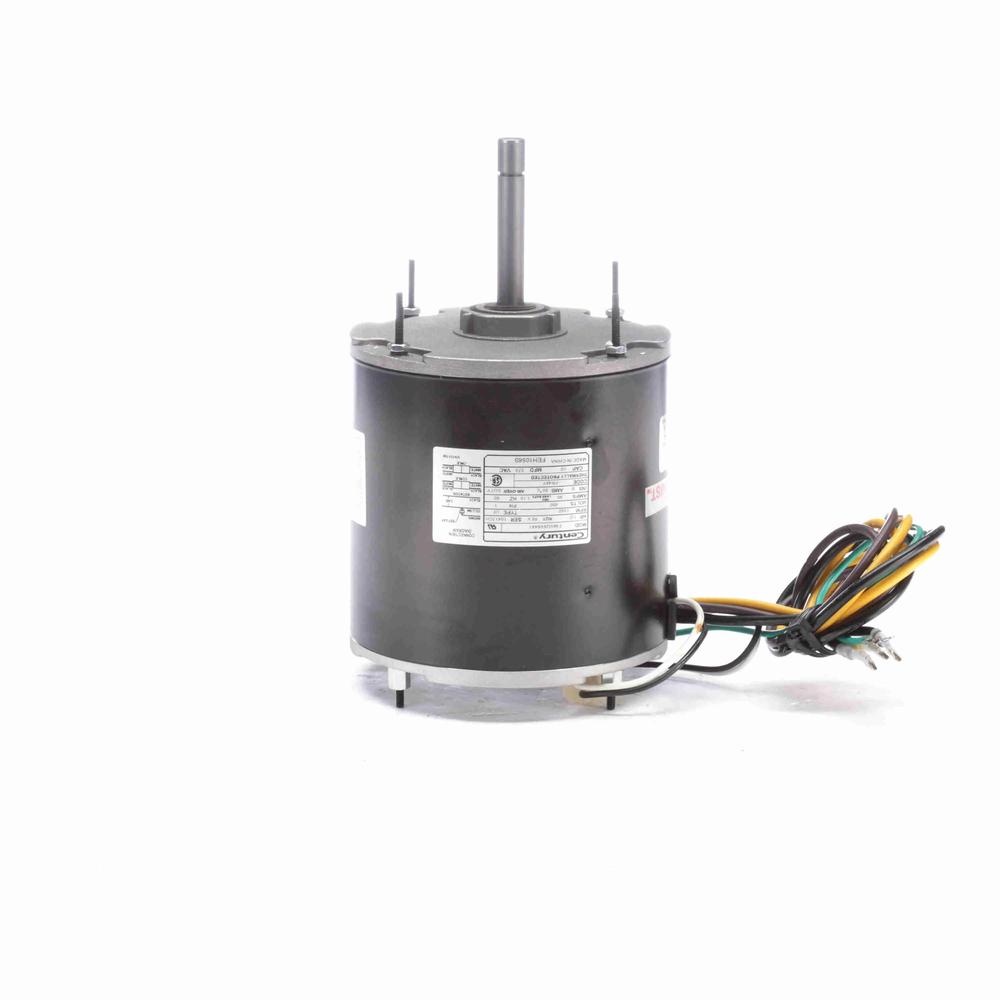

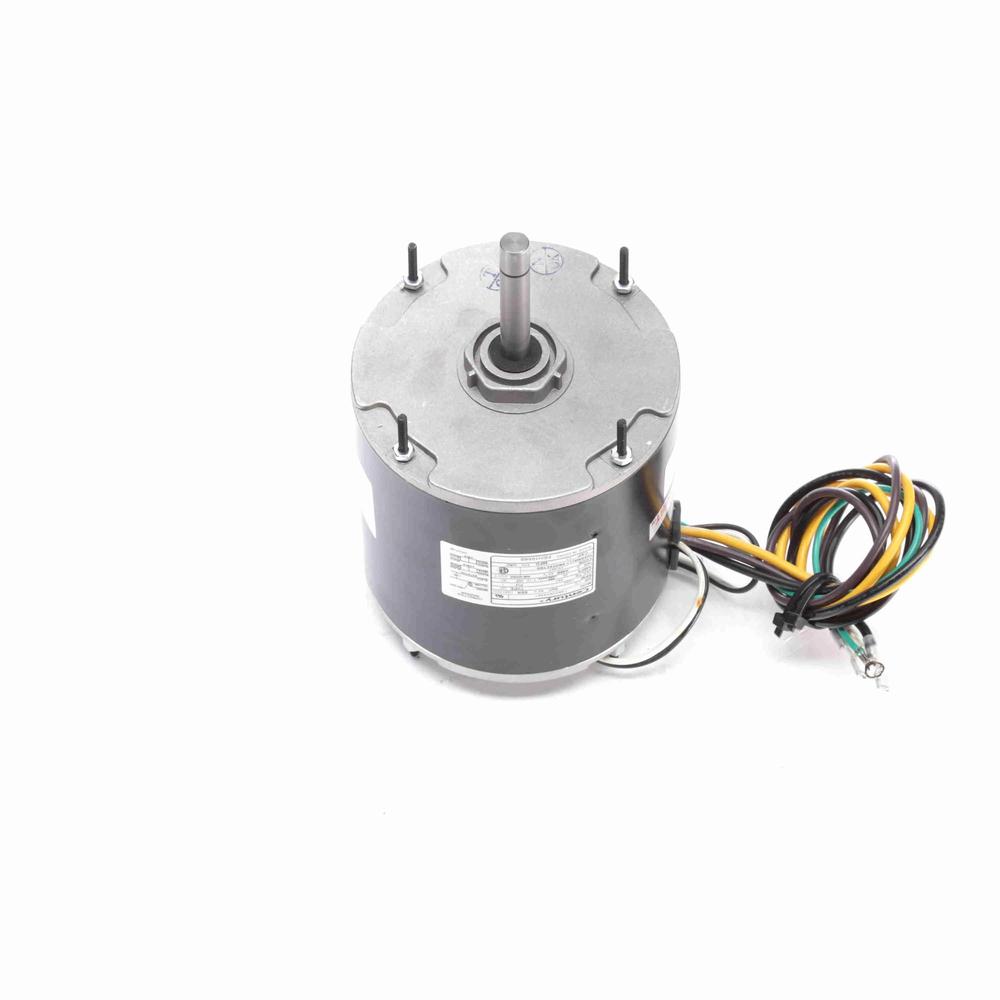

| PRODUCT NAME | 1/2HP,1050,48CND.FAN,CARRIER |
| PRODUCT SKU | FEH1056S |
| ROTATION | Reversible |
| RPM | 1050(1) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.500 IN X 3.3 IN |
| SHAFT DIAMETER (IN IN.) | 0.500 IN |
| SHAFT EXTENSION | 3.3 IN |
| SHAFT TYPE | Flat |
| SPEED | 1050 |
| SUPPLIER | Regal Beloit Epc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 460 V |
| WIDTH | 6.45 IN |
