| BEARING | Ball |
| BRAND | Century |
| C DIMENSION | 12.83 IN |
| CATALOG NUMBER | FB1106 |
| CONNECTION DRAWING NO | 614131-122 |
| DUTY | Air Over |
| EFFICIENCY | Standard |
| ENCLOSURE | SEMI ENCLOSED |
| FL AMPS | 7.6/3.8 A |
| FRAME | 56Y |
| FREQUENCY | 60 HZ |
| HEIGHT | 10 IN |
| INSULATION CLASS | B |
| LEAD TIME | 21 |
| LENGTH | 15.5 IN |
| MANUFACTURE MODEL NUMBER | FB1106 |
| MANUFACTURER | Regal Beloit Epc |
| MOTOR TYPE | Psc |
| MOUNTING | Resilient Base |
| NUMBER OF POLES | 6 |
| NUMBER OF SPEEDS | 1 |
| ORIENTATION | Horizontal |
| OUTPUT | 1 HP |
| OVERLOAD | Automatic |

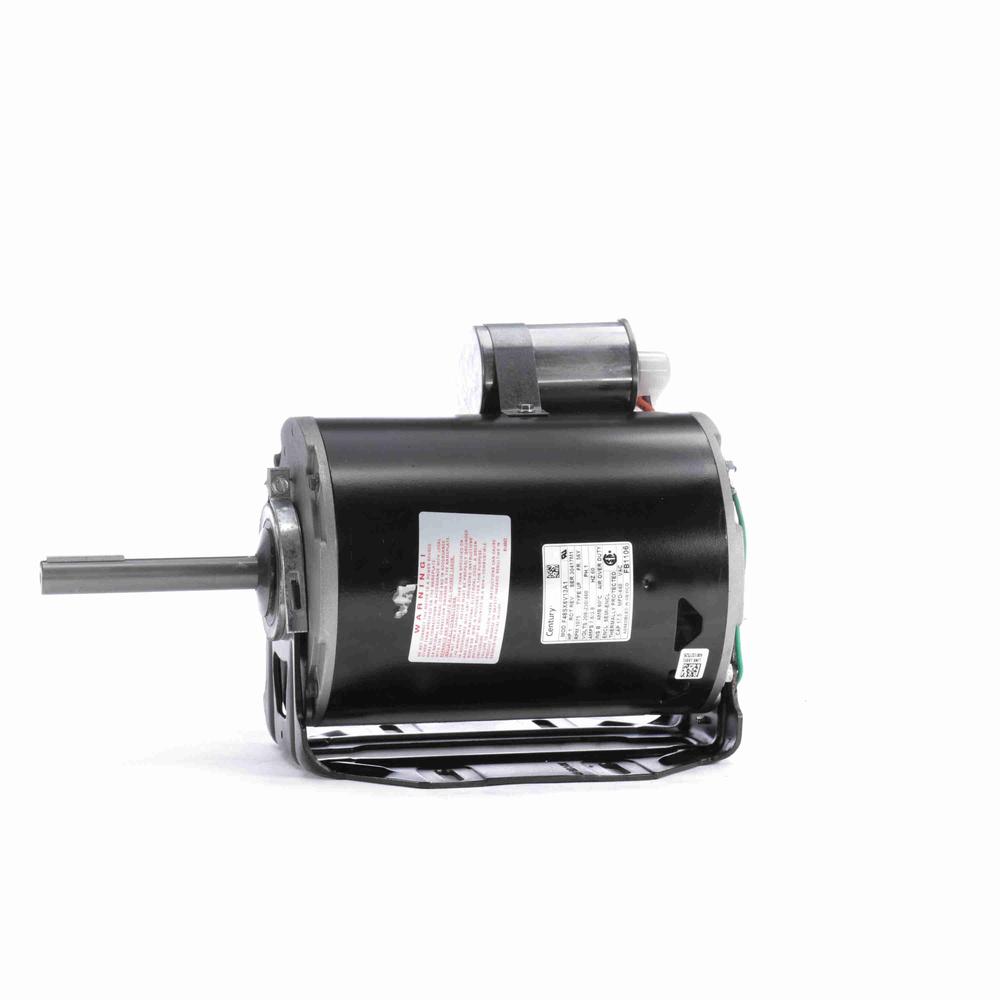

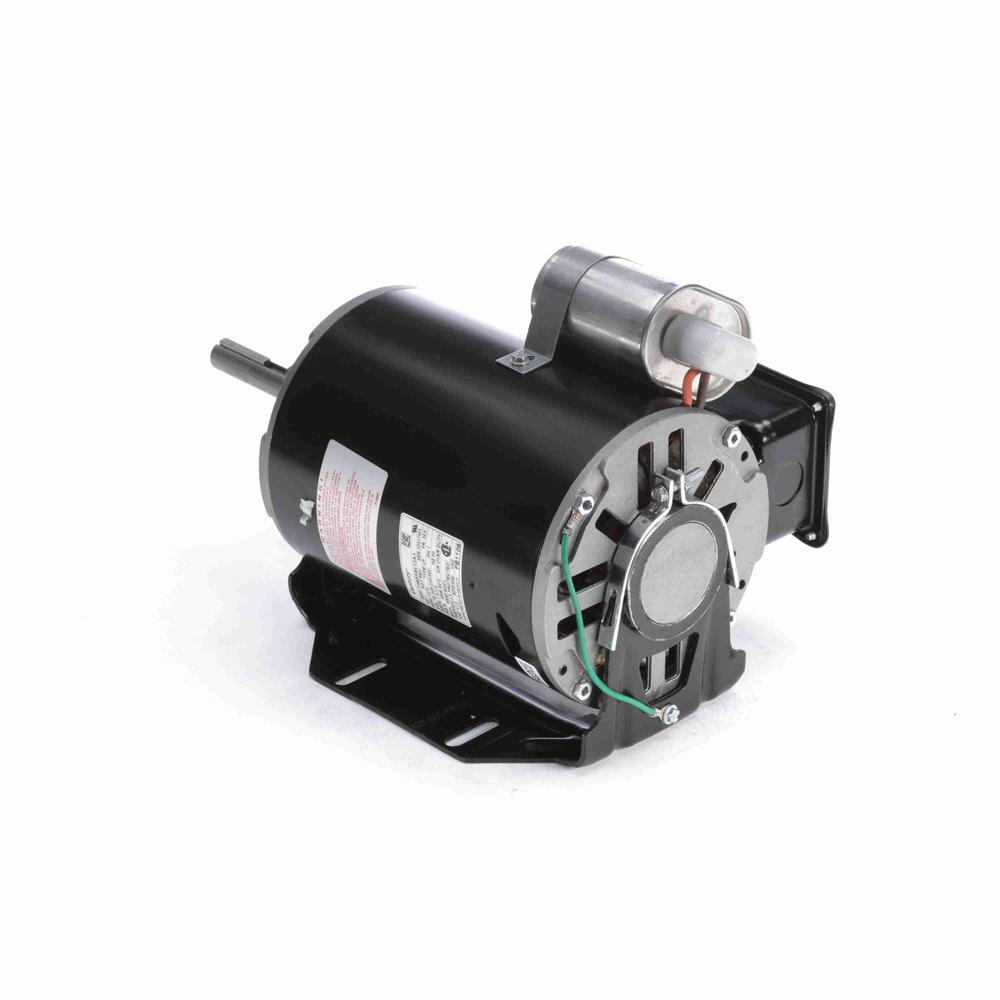

| PRODUCT NAME | 1 HP, 1075 RPM, 56Y, PSC |
| PRODUCT SKU | FB1106 |
| ROTATION | Reversible |
| RPM | 1075(1) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.625 IN X 4.1 IN |
| SHAFT DIAMETER (IN IN.) | 0.625 IN |
| SHAFT EXTENSION | 4.1 IN |
| SHAFT TYPE | Keyed |
| SPEED | 1075 |
| SUPPLIER | Regal Beloit Epc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 208-230/460 V |
| WIDTH | 10.5 IN |
