| BEARING | Ball |
| BLOWER TYPE | Direct Drive |
| BRAND | Century |
| C DIMENSION | 9.36 IN |
| CATALOG NUMBER | EM3586 |
| DUTY | Air Over |
| EFFICIENCY | Standard |
| ENCLOSURE | OPEN ENCLOSED |
| FL AMPS | 2.5-1.6-1.2 A |
| FRAME | 48Y |
| FREQUENCY | 60 HZ |
| HEIGHT | 6.81 IN |
| INSULATION CLASS | B |
| LEAD TIME | 21 |
| LENGTH | 13.78 IN |
| MANUFACTURE MODEL NUMBER | EM3586 |
| MANUFACTURER | Regal Beloit Epc |
| MOTOR TYPE | Psc |
| MOUNTING | Extended Studs |
| NUMBER OF POLES | 6 |
| NUMBER OF SPEEDS | 3 |
| ORIENTATION | Horizontal |
| OUTPUT | 1/3 HP |
| OVERLOAD | Automatic |

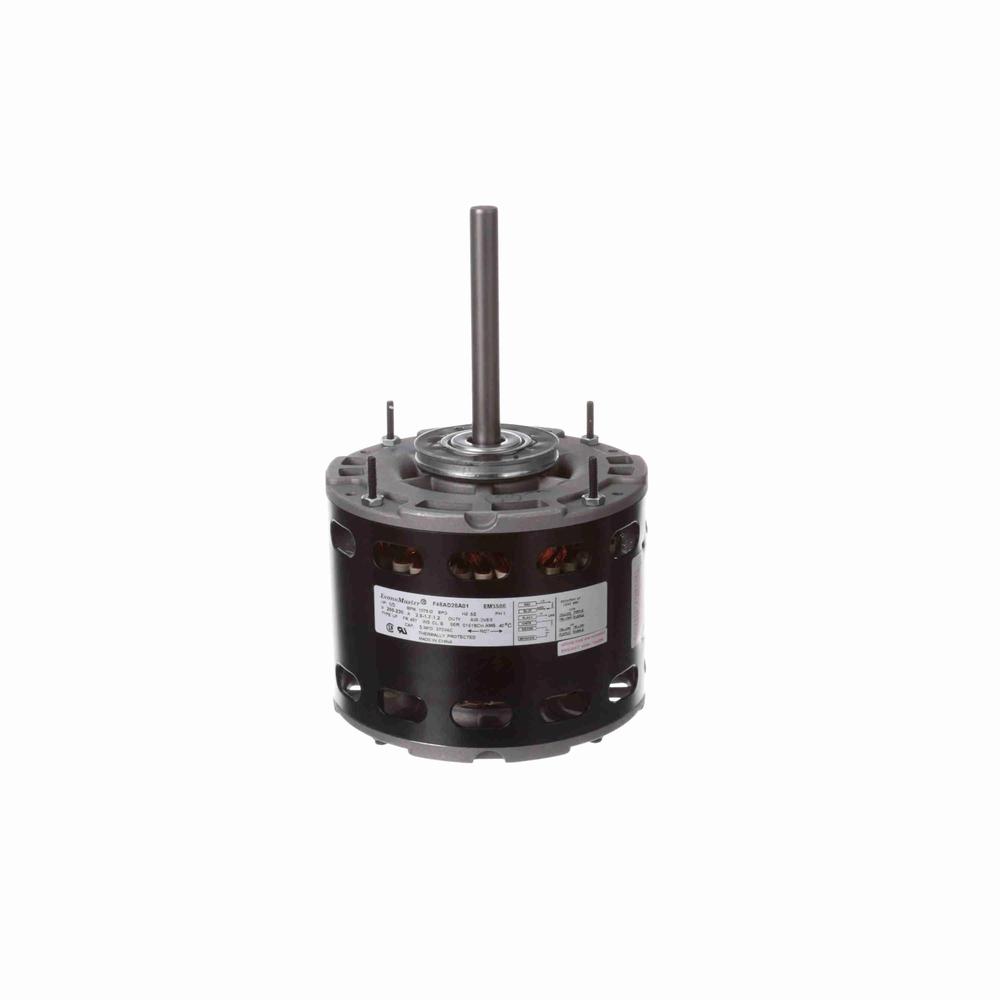

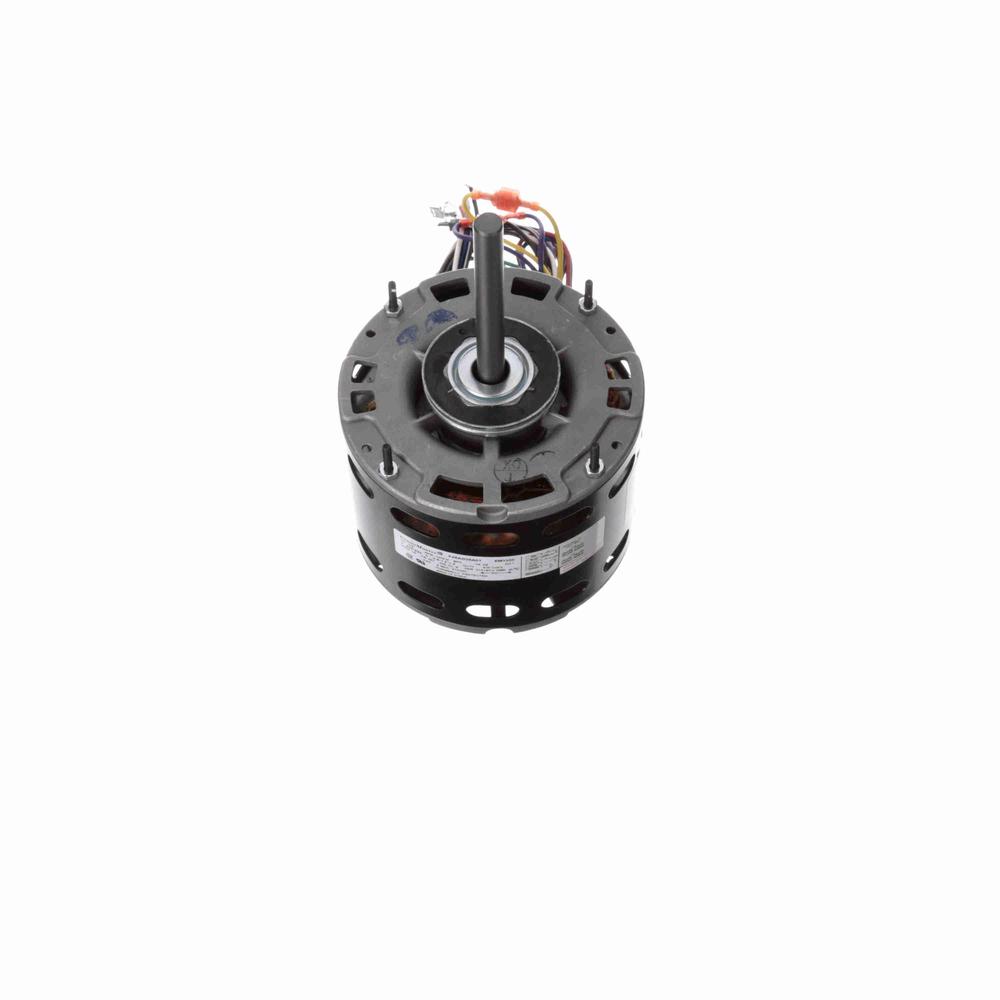

| PRODUCT NAME | High-Performance 208-230V, 48Y Frame, OAO PSC Motor with 1/3 HP & 1200 RPM |
| PRODUCT SKU | EM3586 |
| ROTATION | Reversible |
| RPM | 1075(3) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.500 IN X 4 IN |
| SHAFT DIAMETER (IN IN.) | 0.500 IN |
| SHAFT EXTENSION | 4 IN |
| SHAFT TYPE | Flat |
| SPEED | 1075 |
| SUPPLIER | Regal Beloit Epc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 208-230 V |
| WIDTH | 6.41 IN |
