| BEARING | Sleeve |
| BLOWER TYPE | Dual Wheel |
| BRAND | Century |
| C DIMENSION | 18 IN |
| CATALOG NUMBER | DCL4421 |
| CONNECTION DRAWING NO | 7559A83F01 |
| DUTY | Continuous |
| EFFICIENCY | Standard |
| ENCLOSURE | OPEN ENCLOSED |
| FL AMPS | 3.5 A |
| FRAME | 42Y |
| FREQUENCY | 60 HZ |
| HEIGHT | 6.81 IN |
| INSULATION CLASS | B |
| LEAD TIME | 18 |
| LENGTH | 22.87 IN |
| MANUFACTURE MODEL NUMBER | DCL4421 |
| MANUFACTURER | Regal Beloit Epc |
| MOTOR TYPE | Shp |
| MOUNTING | Resilient Rings |
| NUMBER OF POLES | 4 |
| NUMBER OF SPEEDS | 3 |
| ORIENTATION | Horizontal |
| OUTPUT | 1/10,1/15,1/25 HP |
| OVERLOAD | Automatic |

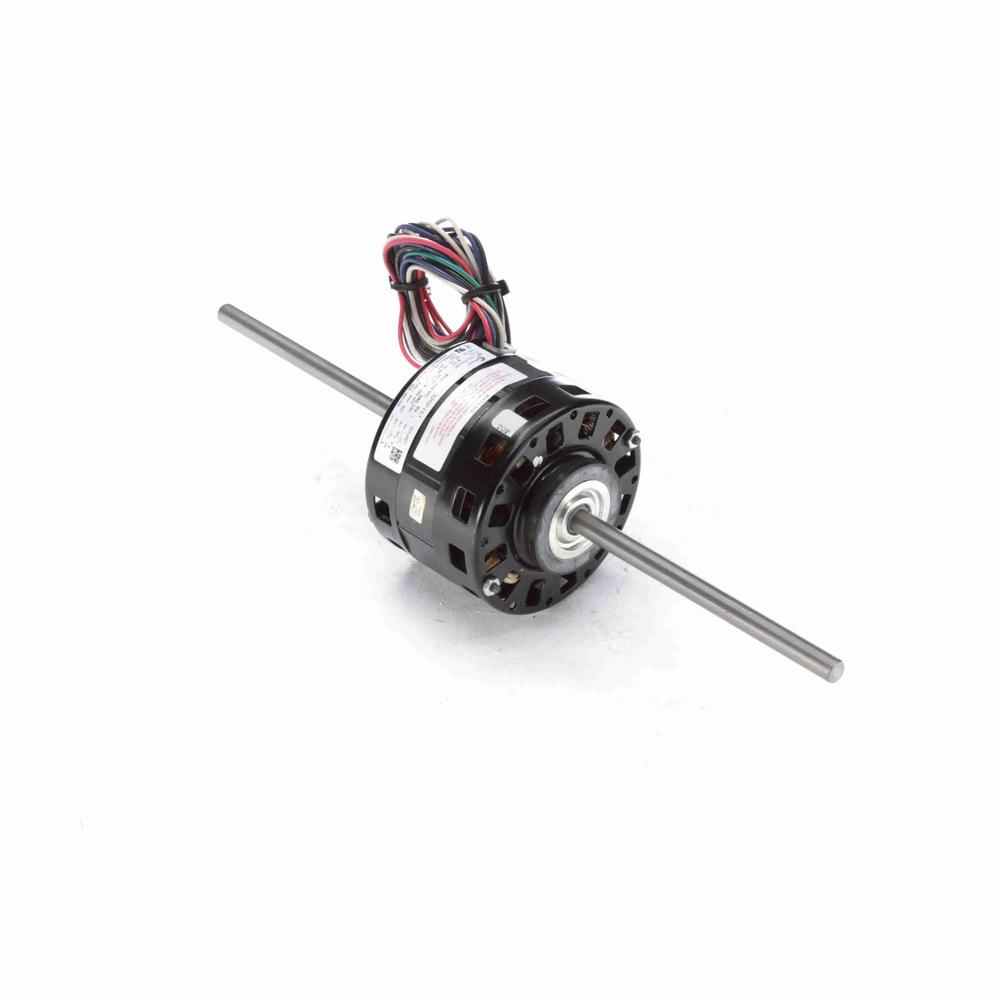

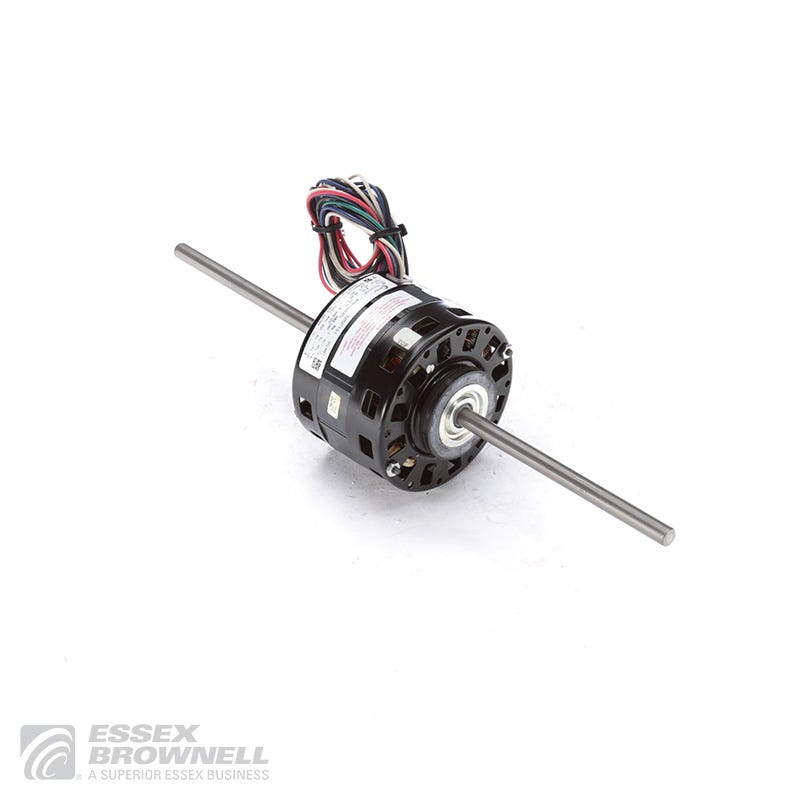

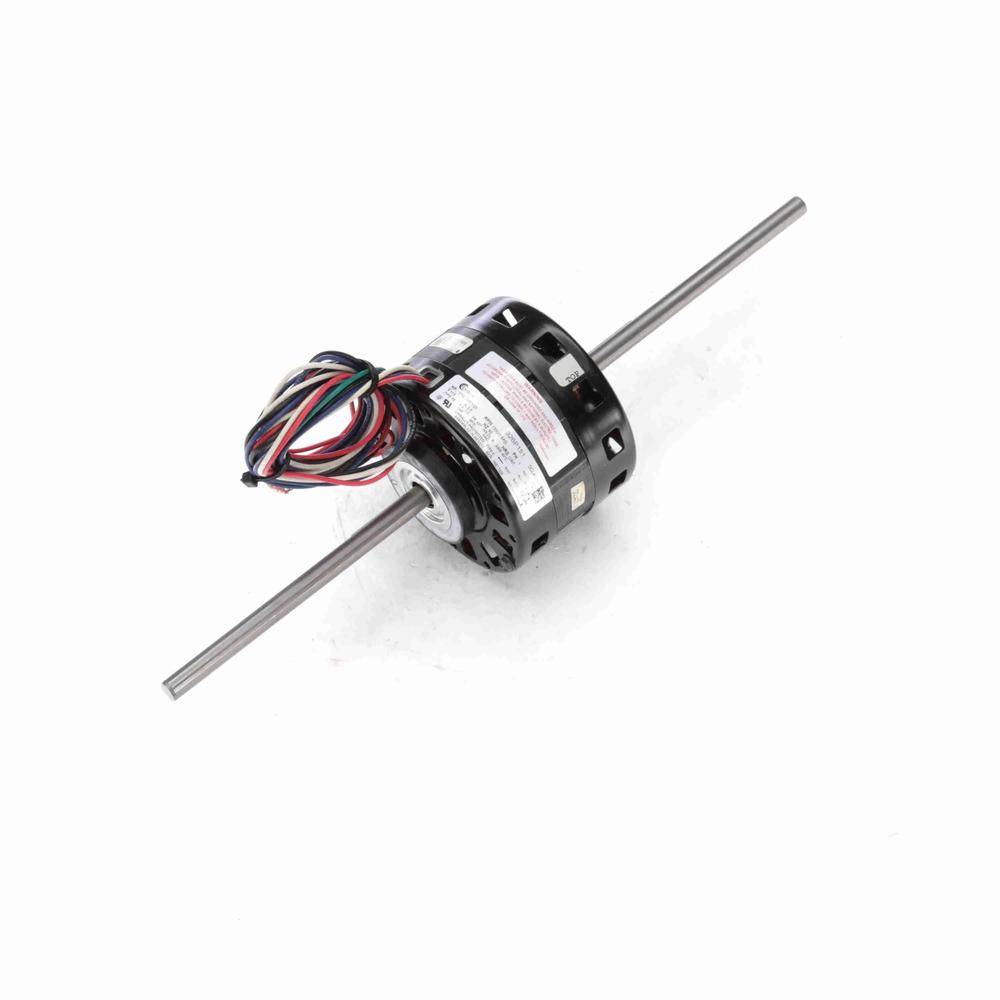

| PRODUCT NAME | 1/10,1550(3),115,42,OPEN,SHADED,DBL SHFT |
| PRODUCT SKU | DCL4421 |
| ROTATION | Counterclockwise Lead End |
| RPM | 1550(3) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.500 IN X 7.3 X .5 X 7.3 IN |
| SHAFT DIAMETER (IN IN.) | 0.500 IN |
| SHAFT EXTENSION | 7.3X.5X7.3 IN |
| SHAFT TYPE | Flat |
| SPEED | 1550 |
| SUPPLIER | Regal Beloit Epc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 115 V |
| WIDTH | 6.81 IN |
