| BEARING | Sleeve |
| BLOWER TYPE | Dual Wheel |
| BRAND | Century |
| C DIMENSION | 18.5 IN |
| CATALOG NUMBER | DC4001 |
| CONNECTION DRAWING NO | 2494A79F01 |
| DUTY | Air Over |
| EFFICIENCY | Standard |
| ENCLOSURE | OPEN ENCLOSED |
| FL AMPS | 2.3 A |
| FRAME | 42Y |
| FREQUENCY | 50 HZ |
| HEIGHT | 6.81 IN |
| INSULATION CLASS | A |
| LEAD TIME | 18 |
| LENGTH | 22.87 IN |
| MANUFACTURE MODEL NUMBER | DC4001 |
| MANUFACTURER | Regal Beloit Epc |
| MOTOR TYPE | Psc |
| MOUNTING | Resilient Rings |
| NUMBER OF POLES | 4 |
| NUMBER OF SPEEDS | 1 |
| ORIENTATION | Horizontal |
| OUTPUT | 1/3 HP |
| OVERLOAD | Automatic |

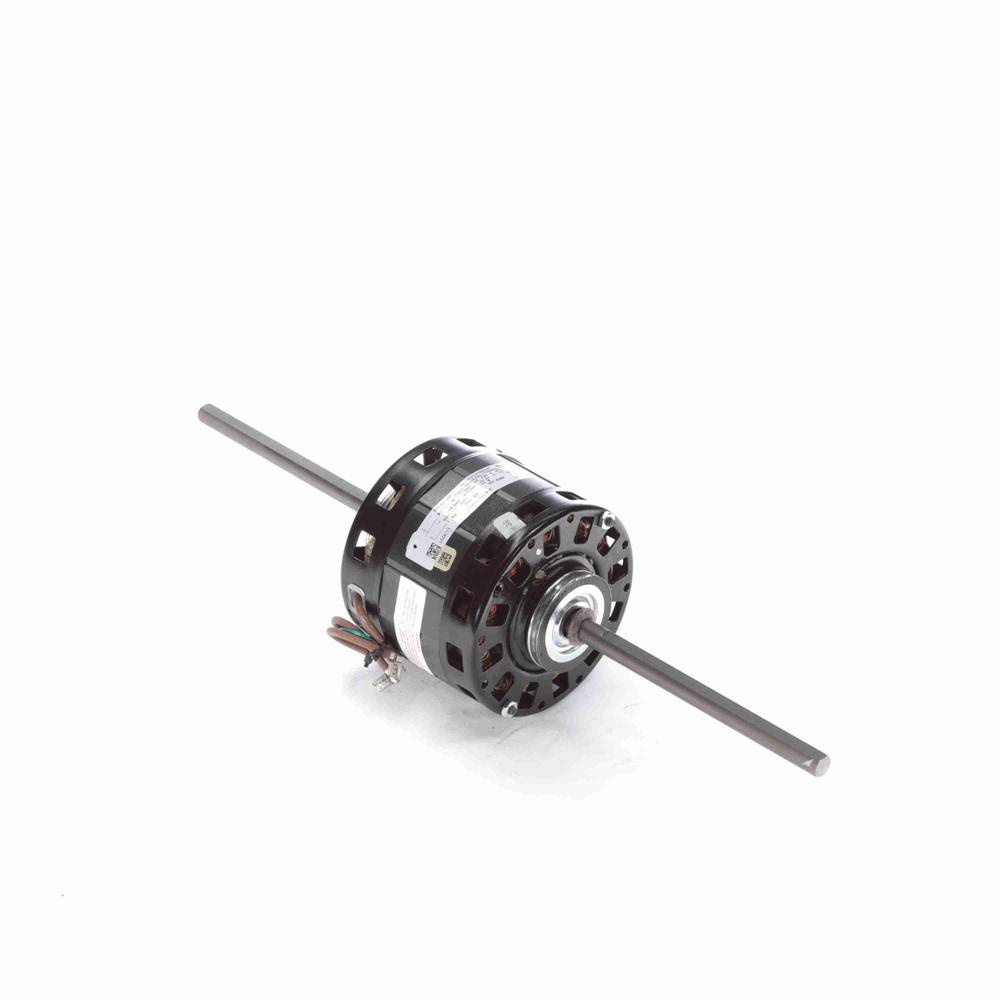

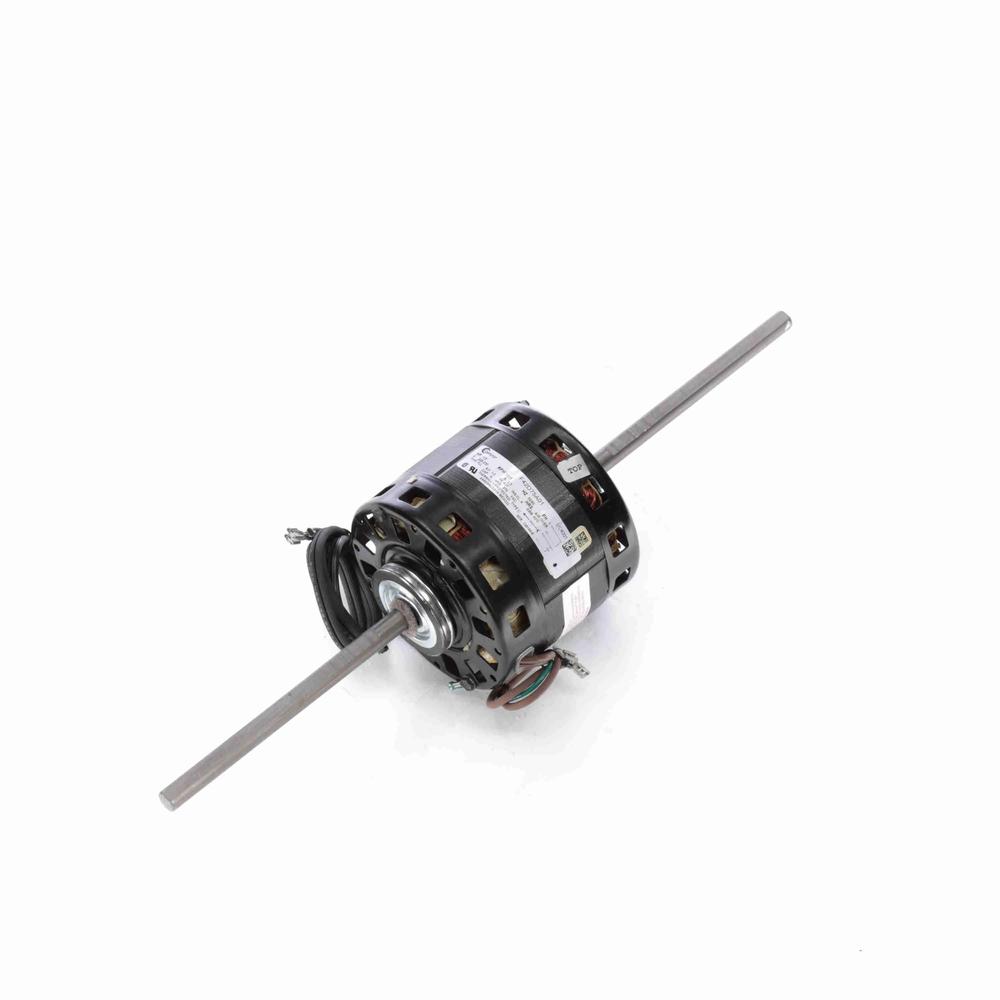

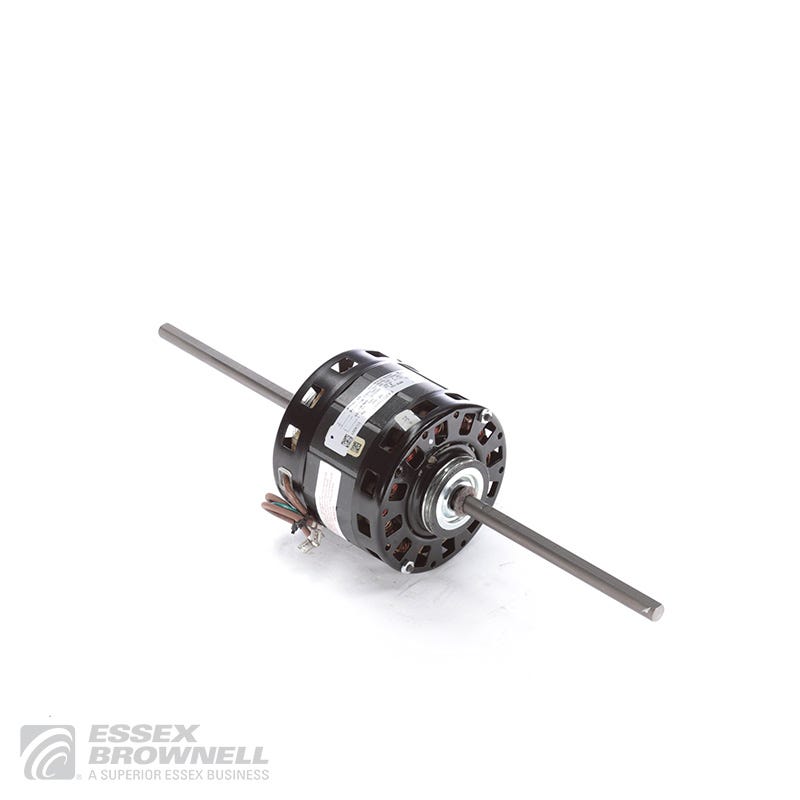

| PRODUCT NAME | 1/3,1625,208-230,PSC,42,OPEN,DBL SHFT |
| PRODUCT SKU | DC4001 |
| ROTATION | Counterclockwise Lead End |
| RPM | 1625(1) |
| SERVICE FACTOR | 1 |
| SHAFT | 0.500 IN X 7.2 X .5 X 7.2 IN |
| SHAFT DIAMETER (IN IN.) | 0.500 IN |
| SHAFT EXTENSION | 7.2X.5X7.2 IN |
| SHAFT TYPE | Flat |
| SPEED | 1625 |
| SUPPLIER | Regal Beloit Epc |
| TYPE OF OVERLOAD PROTECTOR | Thermally Protected |
| UL | Recognized |
| UNIT OF MEASURE | Each |
| VOLTAGE | 208-230 V |
| WIDTH | 6.81 IN |
